henlagt

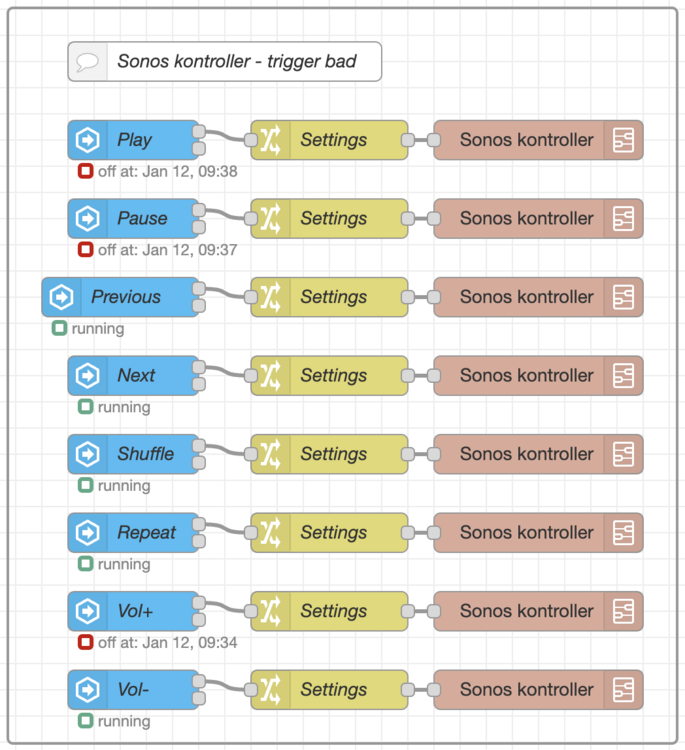

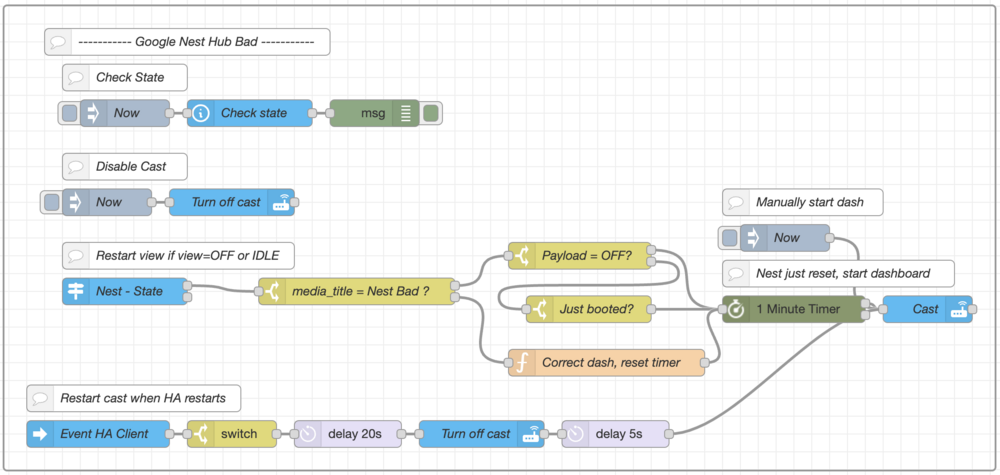

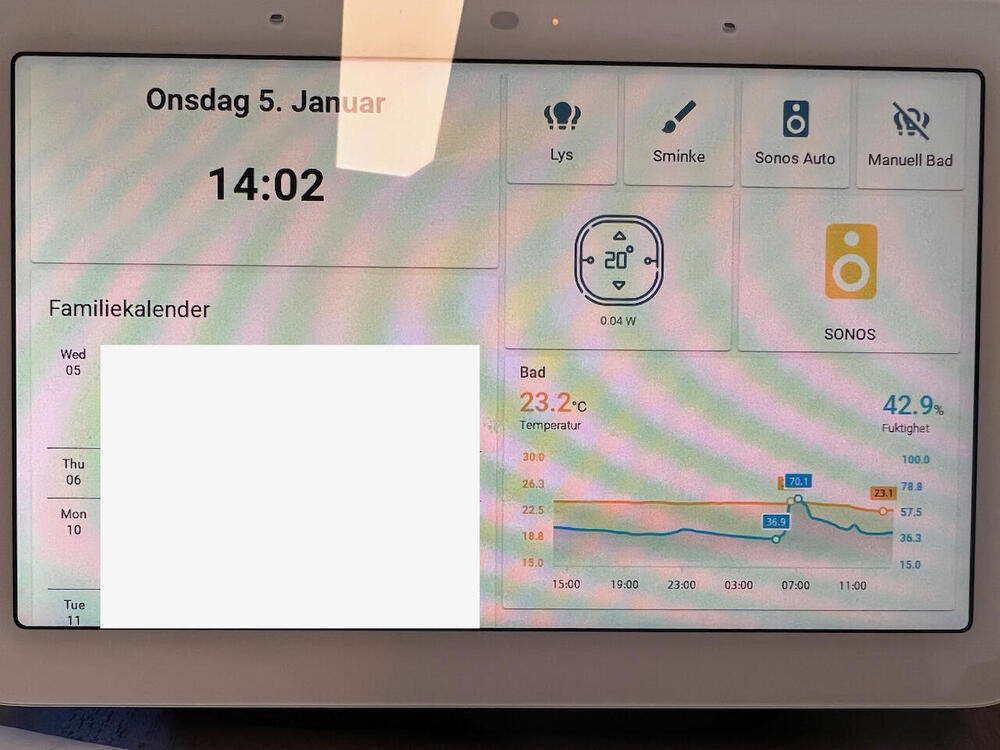

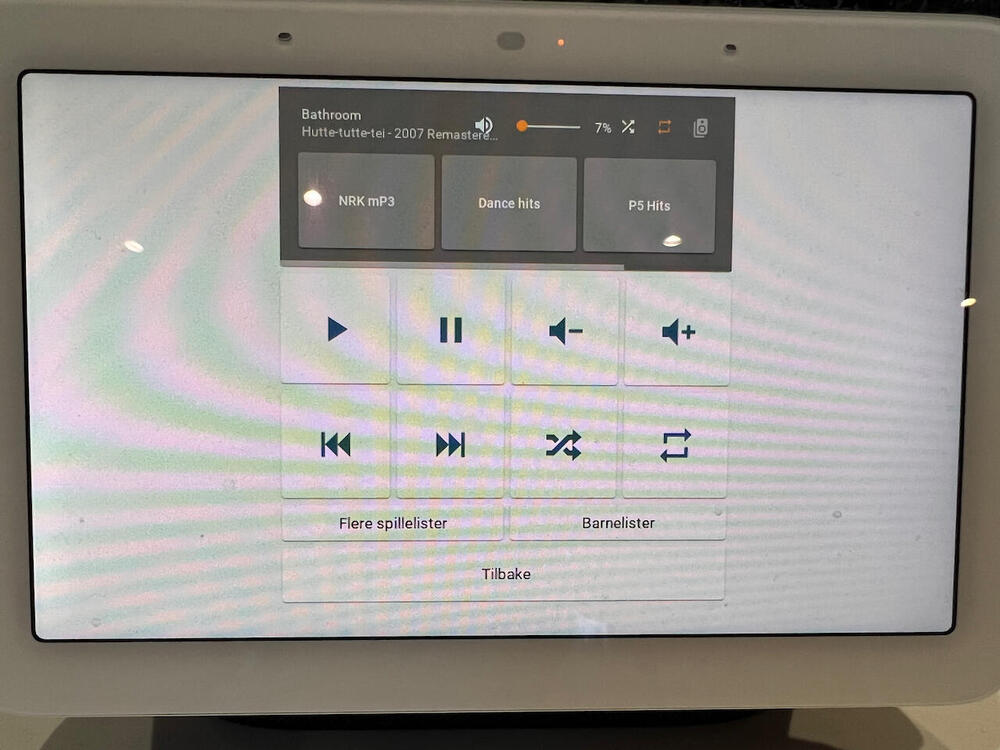

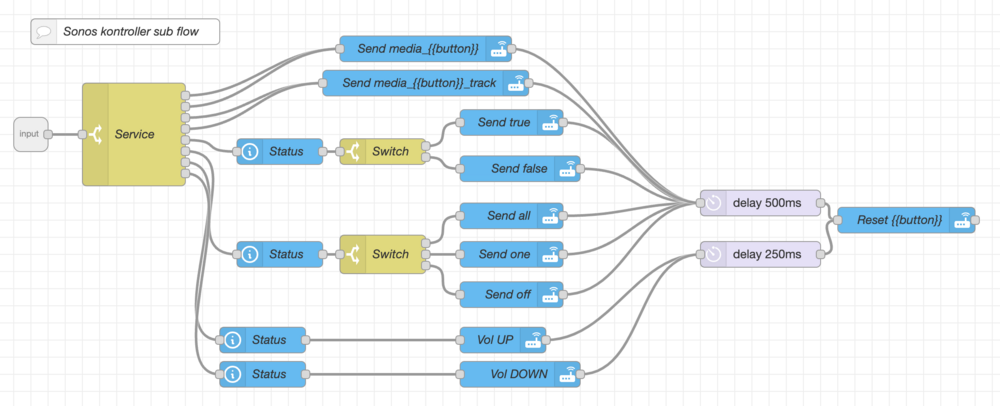

Har nå fått sansen for Google Nest Hub som dashboard og "kontroller" til huset, spesielt Sonos. Har laget eget dashboard og Sonos kontroller da knappene i standard media-spillerne i HA ofte blir litt små på et sånt panel. Fronten på Nest huben: Sonos-kontroll: NodeRed flow, inkludert sub flow, for sonos kontrolleren: NodeRed flow for cast til Nest Hub. Mesteparten her er @Sune sin kode, og han jobber med en oppdatert litt ryddigere versjon med sub flow, som skal være enklere å kopiere. Denne resetter også visning tilbake til startskjermen hvis sonos kontrolleren er brukt og det ikke har vært aktivitet på 1 minutt:

Ser helt fint ut, men du ønsker kanskje å kunne resette timeren? Hvordan fungerer det i praksis? Og trenger du trigge timeren når bevegelse går til on, holder det ikke at den trigges ved bevegelse off?

Mente at HUE er dønn stabilt, ikke nødvendigvis z-stick og conbee 🙂

Har du testet zigbee/zwave direkte i Home Assistant? Feks Conbee II og Aeotec Z-stick? Av integrasjoner mot Home Assistant som er dønn stabilt og har vært det i mange år er Philips HUE. Jeg sverger til HUE på lys. Jeg har ikke samme gode erfaring med Ikea.

Sendte deg en pm.

Jepp, jeg tipper det vil være raskeste vei til mål å bruke zwavejs2mqtt gui for å oppdatere. Jeg vil fjernet "MQTT Discovery" som du kan se på slippern sitt screenshot over her. Da kan du bruke zwavejs2mqtt kontrollpanelet mot standard zwave js server integrert i HA. Les fra denne og 2 overskrifter ned: https://www.home-assistant.io/integrations/zwave_js/#whats-the-benefit-of-using-z-wave-js-to-mqtt-over-the-official-add-on @Mathias, jeg har firmware 3.6 liggende om du ikke har den selv.

Det er dessverre ikke noe mulighet for re-interview i standard zwave js addon. Kommer nok etterhvert.

Jeg ser du har firmware 3.4, det er ikke nyeste og kan være relatert. Det har vært endel trøbbel med disse og det er anbefalt å oppgradere de til firmware 3.6

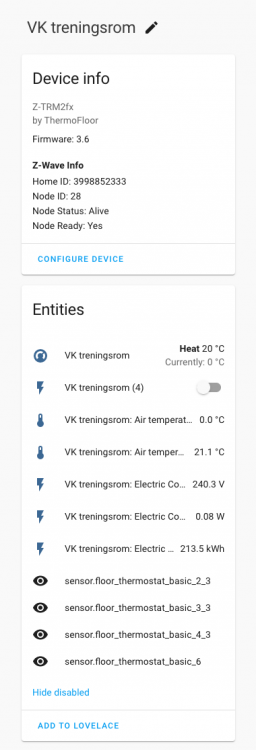

Hvordan ser device info ut?

Jeg har også migrert mine z-trm2fx over. Har du restartet ZwaveJS og HA etter migreringen? Hos oss er det problemer med at den viser feil temperatur, samme som har vært problem med z-trm2fx i alle zwave integrasjoner. Den viser rom-sensor (som ikke er tilkoblet) istendefor gulvvensor. Dette har jeg løst med å bruke Simple Thermostat Card hvor jeg har skjult "current temperature" og valgt hvilken entitet den skal vise manuelt: entity: climate.vk_treningsrom hide: temperature: true state: true sensors: - entity: sensor.vk_treningsrom_temperature name: Temp - entity: sensor.vk_treningsrom_power name: Strøm control: hvac: cool: false preset: none: name: Comfort type: 'custom:simple-thermostat' Card'et ser da sånn her ut:

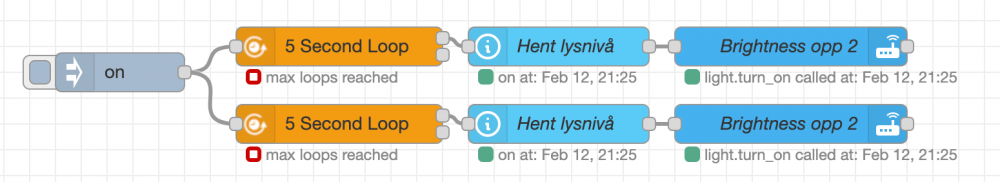

Flow for å dimme opp/ned lyset over tid. Noden som er brukt for å loope heter "node-red-contrib-looptimer" og den støtter stop-melding, noen som kan være kjekt om du ønsker mange loop eller loop over lang tidsperiode. Denne flow'en trigges manuelt og er kun laget som eksempel. [{"id":"dbcadc41.af56f","type":"inject","z":"c73cf615.f18078","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"on","payloadType":"str","x":150,"y":1580,"wires":[["8a89756b.e4c8e8","2e1c83c6.594f0c"]]},{"id":"f535a633.460a28","type":"api-call-service","z":"c73cf615.f18078","name":"Brightness opp 2","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.wled_lampe","data":"{\"brightness\": data.attributes.brightness + 2}","dataType":"jsonata","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":670,"y":1560,"wires":[[]]},{"id":"73397c27.5837e4","type":"api-current-state","z":"c73cf615.f18078","name":"Hent lysnivå","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.wled_lampe","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":490,"y":1560,"wires":[["f535a633.460a28"]]},{"id":"de189e5b.269e8","type":"api-current-state","z":"c73cf615.f18078","name":"Hent lysnivå","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_stue","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":490,"y":1620,"wires":[["86cdf1a3.41c84"]]},{"id":"86cdf1a3.41c84","type":"api-call-service","z":"c73cf615.f18078","name":"Brightness opp 2","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lys_stue","data":"{\"brightness\": data.attributes.brightness + 2}","dataType":"jsonata","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":670,"y":1620,"wires":[[]]},{"id":"8a89756b.e4c8e8","type":"looptimer","z":"c73cf615.f18078","duration":"5","units":"Second","maxloops":"100","maxtimeout":"1","maxtimeoutunits":"Hour","name":"","x":320,"y":1560,"wires":[["73397c27.5837e4"],[]]},{"id":"2e1c83c6.594f0c","type":"looptimer","z":"c73cf615.f18078","duration":"5","units":"Second","maxloops":"100","maxtimeout":"1","maxtimeoutunits":"Hour","name":"","x":320,"y":1620,"wires":[["de189e5b.269e8"],[]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

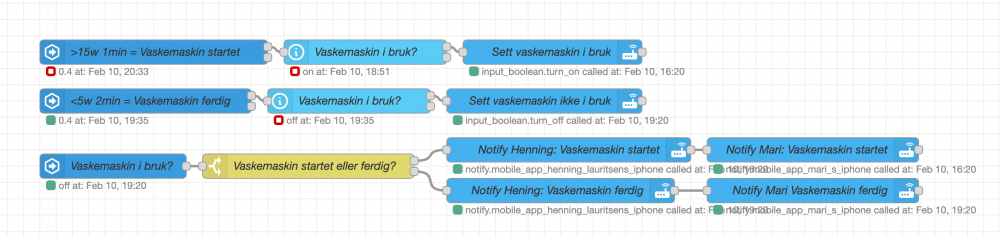

Varsling når vaskemaskin har startet og når den er ferdig. Har vurdert å legge inn en current state node som sjekker om vi er hjemme eller ikke, men fant ut at det egentlig er greit å få varsling uansett. [{"id":"ca5c583.911b9a8","type":"server-state-changed","z":"7c60512.71db9b","name":">15w 1min = Vaskemaskin startet","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sensor.vaskemaskin_power","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"15","halt_if_type":"num","halt_if_compare":"gt","outputs":2,"output_only_on_state_change":true,"for":"1","forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":1300,"y":680,"wires":[["f6347b36.f28db8"],[]]},{"id":"bfefd761.258468","type":"api-call-service","z":"7c60512.71db9b","name":"Sett vaskemaskin i bruk","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.vaskemaskin_i_bruk","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1790,"y":680,"wires":[[]]},{"id":"2de7313e.2d0d6e","type":"api-call-service","z":"7c60512.71db9b","name":"Sett vaskemaskin ikke i bruk","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.vaskemaskin_i_bruk","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1780,"y":740,"wires":[[]]},{"id":"40a71da6.1ebec4","type":"server-state-changed","z":"7c60512.71db9b","name":"<5w 2min = Vaskemaskin ferdig","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sensor.vaskemaskin_power","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"5","halt_if_type":"num","halt_if_compare":"lt","outputs":2,"output_only_on_state_change":true,"for":"2","forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":1290,"y":740,"wires":[["f6255881.76a568"],[]]},{"id":"f6347b36.f28db8","type":"api-current-state","z":"7c60512.71db9b","name":"Vaskemaskin i bruk?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.vaskemaskin_i_bruk","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1560,"y":680,"wires":[["bfefd761.258468"],[]]},{"id":"f6255881.76a568","type":"api-current-state","z":"7c60512.71db9b","name":"Vaskemaskin i bruk?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.vaskemaskin_i_bruk","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1540,"y":740,"wires":[["2de7313e.2d0d6e"],[]]},{"id":"af45b932.870058","type":"server-state-changed","z":"7c60512.71db9b","name":"Vaskemaskin i bruk?","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.vaskemaskin_i_bruk","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"","halt_if_type":"num","halt_if_compare":"is","outputs":1,"output_only_on_state_change":true,"for":"","forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":1250,"y":820,"wires":[["85eb9110.74b21"]]},{"id":"c96578b9.1f3db8","type":"api-call-service","z":"7c60512.71db9b","name":"Notify Henning: Vaskemaskin startet","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"notify","service":"mobile_app_henning_lauritsens_iphone","entityId":"","data":"{\"message\":\"Vaskemaskin startet\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1810,"y":800,"wires":[["588e50c9.e8967"]]},{"id":"85eb9110.74b21","type":"switch","z":"7c60512.71db9b","name":"Vaskemaskin startet eller ferdig?","property":"payload","propertyType":"msg","rules":[{"t":"eq","v":"on","vt":"str"},{"t":"eq","v":"off","vt":"str"}],"checkall":"true","repair":false,"outputs":2,"x":1490,"y":820,"wires":[["c96578b9.1f3db8"],["d888bba8.6e2c58"]]},{"id":"d888bba8.6e2c58","type":"api-call-service","z":"7c60512.71db9b","name":"Notify Hening: Vaskemaskin ferdig","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"notify","service":"mobile_app_henning_lauritsens_iphone","entityId":"","data":"{\"message\":\"Vaskemaskin ferdig\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1800,"y":850,"wires":[["ba8eb72b.760e28"]]},{"id":"ba8eb72b.760e28","type":"api-call-service","z":"7c60512.71db9b","name":"Notify Mari Vaskemaskin ferdig","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"notify","service":"mobile_app_mari_s_iphone","entityId":"","data":"{\"message\":\"Vaskemaskin ferdig\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":2110,"y":850,"wires":[[]]},{"id":"588e50c9.e8967","type":"api-call-service","z":"7c60512.71db9b","name":"Notify Mari: Vaskemaskin startet","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"notify","service":"mobile_app_mari_s_iphone","entityId":"","data":"{\"message\":\"Vaskemaskin startet, forbered deg på tømming når programmet er ferdig\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":2110,"y":800,"wires":[[]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

[emoji106] Den vil bli tilgjengelig når du oppgraderer til 2021.2.1.

Mulig jeg tolket deprecated litt feil og at den ikke fjernes i denne oppgraderingen. Jeg syns det virker som de er veldig ivrige etter å få Z-Wave JS inn raskt og at vi skal flytte over, det støtter jeg, men per nå er ikke integrasjonen helt ferdig og mangler funksjonalitet. Jeg er litt overrasket over recommended stempelet de gir denne integrasjonen i release notes.

Deprecated "allerede" [emoji46]. Jeg har testet mye de siste ukene, inkludert Z-Wave JS i beta av 2012.1.2 og jeg har med mye tålmodighet og mange forsøk ikke fått til et stabilt oppsett på annet en den gamle 1.4. Vil tro utviklingen av Z-Wave JS vil bli prioritert og raskt forbedret, men den er ikke klar nå og de burde ha ventet litt før de fjerner 1.4, min mening [emoji846]

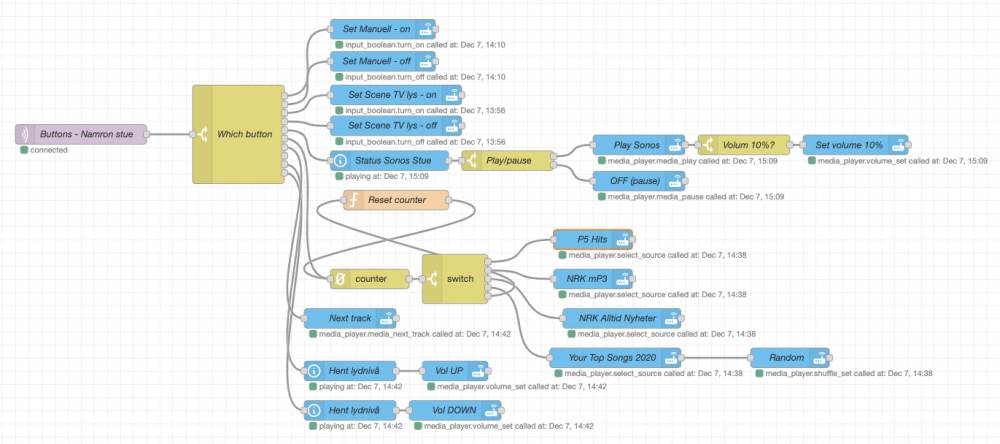

I stua har vi en Namron Z-Wave bryter. Denne har 8 knapper og er fin til å starte scener med, og siden den har vanlig trykk og hold kan du lage 16 funksjoner fra denne. Om du ønsker zigbee så kommer samme bryter i zigbee versjon også. @Sune har laget en fin Sonos kontroller med node-red for sin HUE dimmer, jeg modifiserte hans kode litt og ble veldig fornøyd med hvordan det passer med Namron bryteren. Nå benytter jeg 4 knapper til 2 scener, på og av, og 5 "knapper" til Sonos, 4 trykk og 1 hold. Min z-wave kontroller er tilkoblet HomeSeer. Jeg bruker MQTT for å sende status endringer fra z-wave devicene til Home Assistant. Triggeren i sekvensen under er derfor en "mqtt in node". Kort forklaring til Sonos styringen: Ett trykk knapp 5 = Toogle - Play Sonos og sett volum til 10% eller pause Sonos. Hold knapp 5 = Kanal-/spillelistevelger Ett trykk knapp 6 = Neste sang Ett trykk knapp 7 = Volume + Ett trykk knapp 8 = Volume - Her er sekvensen: Kode: [{"id":"df1da4b9.fae6c8","type":"mqtt in","z":"e7db151a.fabb88","name":"Buttons - Namron stue","topic":"homeseer/StueNamron","qos":"2","datatype":"auto","broker":"538b5aa3.d2fd64","x":320,"y":1060,"wires":[["40dde949.ea2048"]]},{"id":"40dde949.ea2048","type":"switch","z":"e7db151a.fabb88","name":"Which button","property":"payload","propertyType":"msg","rules":[{"t":"eq","v":"1000","vt":"num"},{"t":"eq","v":"2000","vt":"num"},{"t":"eq","v":"3000","vt":"num"},{"t":"eq","v":"4000","vt":"num"},{"t":"eq","v":"5000","vt":"num"},{"t":"eq","v":"5002","vt":"num"},{"t":"eq","v":"6000","vt":"num"},{"t":"eq","v":"6002","vt":"num"},{"t":"eq","v":"7000","vt":"num"},{"t":"eq","v":"8000","vt":"num"}],"checkall":"true","repair":false,"outputs":10,"x":560,"y":1060,"wires":[["329c0142.585bde"],["2717f7f4.f26098"],["5a85b6a9.e215d8"],["e36f5fd4.4123e"],["e00cdb76.3c86d8"],["d830fd08.efe06"],["2808e812.b8b528"],[],["1b9a6a1.1546e96"],["cfbe8058.c9952"]]},{"id":"e36f5fd4.4123e","type":"api-call-service","z":"e7db151a.fabb88","name":"Set Scene TV lys - off","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.scene_stue_tv_lys","data":"","dataType":"json","mergecontext":"","output_location":"payload","output_location_type":"msg","mustacheAltTags":false,"x":800,"y":1047,"wires":[[]]},{"id":"5a85b6a9.e215d8","type":"api-call-service","z":"e7db151a.fabb88","name":"Set Scene TV lys - on","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.scene_stue_tv_lys","data":"","dataType":"json","mergecontext":"","output_location":"payload","output_location_type":"msg","mustacheAltTags":false,"x":800,"y":1000,"wires":[[]]},{"id":"329c0142.585bde","type":"api-call-service","z":"e7db151a.fabb88","name":"Set Manuell - on","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.manuell_stue","data":"","dataType":"json","mergecontext":"","output_location":"payload","output_location_type":"msg","mustacheAltTags":false,"x":780,"y":900,"wires":[[]]},{"id":"2717f7f4.f26098","type":"api-call-service","z":"e7db151a.fabb88","name":"Set Manuell - off","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.manuell_stue","data":"","dataType":"json","mergecontext":"","output_location":"payload","output_location_type":"msg","mustacheAltTags":false,"x":780,"y":949,"wires":[[]]},{"id":"583415ce.87c6ec","type":"api-call-service","z":"e7db151a.fabb88","name":"Vol UP","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"volume_set","entityId":"media_player.stue","data":"{\"volume_level\": data.attributes.volume_level + 0.05}","dataType":"jsonata","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":890,"y":1420,"wires":[[]]},{"id":"9e0c8e58.d9799","type":"api-call-service","z":"e7db151a.fabb88","name":"Vol DOWN","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"volume_set","entityId":"media_player.stue","data":"{\"volume_level\": data.attributes.volume_level - 0.05}","dataType":"jsonata","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":890,"y":1480,"wires":[[]]},{"id":"cfbe8058.c9952","type":"api-current-state","z":"e7db151a.fabb88","name":"Hent lydnivå","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.stue","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":730,"y":1480,"wires":[["9e0c8e58.d9799"]]},{"id":"1b9a6a1.1546e96","type":"api-current-state","z":"e7db151a.fabb88","name":"Hent lydnivå","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.stue","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":730,"y":1420,"wires":[["583415ce.87c6ec"]]},{"id":"d830fd08.efe06","type":"counter","z":"e7db151a.fabb88","name":"","init":"1","step":"1","lower":"","upper":"5","mode":"increment","outputs":1,"x":760,"y":1280,"wires":[["8ab4fc04.25a4d"]]},{"id":"535c6845.58c958","type":"function","z":"e7db151a.fabb88","name":"Reset counter","func":"msg.reset = true;\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":800,"y":1160,"wires":[["d830fd08.efe06"]]},{"id":"8ab4fc04.25a4d","type":"switch","z":"e7db151a.fabb88","name":"","property":"count","propertyType":"msg","rules":[{"t":"eq","v":"1","vt":"num"},{"t":"eq","v":"2","vt":"num"},{"t":"eq","v":"3","vt":"num"},{"t":"eq","v":"4","vt":"num"},{"t":"eq","v":"5","vt":"num"}],"checkall":"true","repair":false,"outputs":5,"x":890,"y":1280,"wires":[["6f1c3d6e.7a6fb4"],["53d3f56d.a2b99c"],["8b92376f.302ff8"],["49884f24.4a39f"],["535c6845.58c958"]]},{"id":"6f1c3d6e.7a6fb4","type":"api-call-service","z":"e7db151a.fabb88","name":"P5 Hits","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"media_player","service":"select_source","entityId":"media_player.stue","data":"{\"source\":\"P5 Hits\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1054,"y":1180,"wires":[[]]},{"id":"53d3f56d.a2b99c","type":"api-call-service","z":"e7db151a.fabb88","name":"NRK mP3","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"media_player","service":"select_source","entityId":"media_player.stue","data":"{\"source\":\"NRK mP3\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1114,"y":1240,"wires":[[]]},{"id":"8b92376f.302ff8","type":"api-call-service","z":"e7db151a.fabb88","name":"NRK Alltid Nyheter","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"media_player","service":"select_source","entityId":"media_player.stue","data":"{\"source\":\"NRK Alltid Nyheter\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1144,"y":1340,"wires":[[]]},{"id":"49884f24.4a39f","type":"api-call-service","z":"e7db151a.fabb88","name":"Your Top Songs 2020","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"media_player","service":"select_source","entityId":"media_player.stue","data":"{\"source\": \"Your Top Songs 2020\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1134,"y":1400,"wires":[["ce7c0418.fdbe88"]]},{"id":"ce7c0418.fdbe88","type":"api-call-service","z":"e7db151a.fabb88","name":"Random","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"media_player","service":"shuffle_set","entityId":"media_player.stue","data":"{\"shuffle\": \"true\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1400,"y":1400,"wires":[[]]},{"id":"22252bf2.02d1c4","type":"switch","z":"e7db151a.fabb88","name":"Volum 10%?","property":"data.attributes.volume_level","propertyType":"msg","rules":[{"t":"neq","v":"0.1","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":1330,"y":1076,"wires":[["6f26e967.518118"]]},{"id":"6f26e967.518118","type":"api-call-service","z":"e7db151a.fabb88","name":"Set volume 10%","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"media_player","service":"volume_set","entityId":"media_player.stue","data":"{\"volume_level\":0.1}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1500,"y":1076,"wires":[[]]},{"id":"e00cdb76.3c86d8","type":"api-current-state","z":"e7db151a.fabb88","name":"Status Sonos Stue","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.stue","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":790,"y":1100,"wires":[["98d59230.23eda"]]},{"id":"2808e812.b8b528","type":"api-call-service","z":"e7db151a.fabb88","name":"Next track","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_next_track","entityId":"media_player.stue","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":730,"y":1340,"wires":[[]]},{"id":"724ab066.3f478","type":"api-call-service","z":"e7db151a.fabb88","name":"Play Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_play","entityId":"media_player.stue","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1170,"y":1076,"wires":[["22252bf2.02d1c4"]]},{"id":"98d59230.23eda","type":"switch","z":"e7db151a.fabb88","name":"Play/pause","property":"payload","propertyType":"msg","rules":[{"t":"eq","v":"paused","vt":"str"},{"t":"eq","v":"playing","vt":"str"}],"checkall":"true","repair":false,"outputs":2,"x":970,"y":1100,"wires":[["724ab066.3f478"],["a8397607.304bd8"]]},{"id":"a8397607.304bd8","type":"api-call-service","z":"e7db151a.fabb88","name":"OFF (pause)","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.stue","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1170,"y":1131,"wires":[[]]},{"id":"538b5aa3.d2fd64","type":"mqtt-broker","name":"MQTT","broker":"192.168.2.20","port":"1883","clientid":"","usetls":false,"compatmode":false,"keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","closeTopic":"","closeQos":"0","closePayload":"","willTopic":"","willQos":"0","willPayload":""},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

Oppdatert 30/3-21. Utelys, automasjon med soloppgang/solnedgang, tid og lux. Lyslenke på levegg skrus av om natta og på igjen i en periode på morgenen hvis ikke lys er over 130 lux. Kode: [{"id":"327b0514.7b4b4a","type":"server-state-changed","z":"f0fcc3d0.d1cc","name":"Sun above horizon","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sun.sun","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"above_horizon","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":110,"y":160,"wires":[["f1094e00.e5888","c31d6935.cf34c8","ade2b140.3f3bb"],["a98965.39001698","c0c0e938.a4db98","111dadce.9ce092","67be2d1f.5e4cd4","85977399.c0687","cf0f867d.229c38","6ea2d77c.48f7c8"]]},{"id":"6106e6a5.30ca88","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn on lys pergola","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_on","entityId":"switch.stikk_lyslenke_pergola","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":510,"y":323,"wires":[[]]},{"id":"e9b205a7.51a3e8","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn on lys basseng","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_on","entityId":"switch.stikk_lyslenke_basseng","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":520,"y":371,"wires":[[]]},{"id":"628af135.818fe","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn on lys under balkong","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_on","entityId":"switch.stikk_lyslenke_balkong","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":530,"y":419,"wires":[[]]},{"id":"cff6215e.b341b","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn on lys hundehus","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_on","entityId":"switch.stikk_lyslenke_hundehus","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":520,"y":466,"wires":[[]]},{"id":"7ea89816.f3ad08","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn on lys terrassen","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.ute_terrassen","data":"{\"brightness_pct\":70,\"transition\":15}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":520,"y":180,"wires":[[]]},{"id":"4d4371a9.91414","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn on lys garasjen","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lys_ute_garasjen","data":"{\"brightness_pct\":70,\"transition\":15}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":520,"y":229,"wires":[[]]},{"id":"4343a0e2.0d5dd","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn on lys inngangsparti","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.ute_inngangsparti","data":"{\"brightness_pct\":70,\"transition\":15}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":530,"y":276,"wires":[[]]},{"id":"1c16887d.1d44d8","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn off lys terrassen","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.ute_terrassen","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":520,"y":40,"wires":[[]]},{"id":"7c204251.1b3a2c","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn off lys garasjen","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.lys_ute_garasjen","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":520,"y":86,"wires":[[]]},{"id":"cf2f8da.7b12e7","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn off lys inngangsparti","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.ute_inngangsparti","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":530,"y":132,"wires":[[]]},{"id":"ed52fe2a.daf3d","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn off lys pergola","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_off","entityId":"switch.stikk_lyslenke_pergola","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":530,"y":540,"wires":[[]]},{"id":"24f35697.85c51a","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn off lys basseng","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_off","entityId":"switch.stikk_lyslenke_basseng","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":540,"y":591,"wires":[[]]},{"id":"8e03408f.b7169","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn off lys under balkong","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_off","entityId":"switch.stikk_lyslenke_balkong","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":550,"y":640,"wires":[[]]},{"id":"23466b14.490a34","type":"api-call-service","z":"f0fcc3d0.d1cc","name":"Turn off lys hundehus","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"switch","service":"turn_off","entityId":"switch.stikk_lyslenke_hundehus","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":540,"y":687,"wires":[[]]},{"id":"e2c891a8.0eae1","type":"inject","z":"f0fcc3d0.d1cc","name":"Tid = 00:30","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"30 00 * * *","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":130,"y":600,"wires":[["adbbf983.fa0e28","ca5ac45d.2f12a8","3298a16c.34907e","b476e643.514668"]]},{"id":"a98965.39001698","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.ute_terrassen","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":180,"wires":[["7ea89816.f3ad08"],[]]},{"id":"c0c0e938.a4db98","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_ute_garasjen","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":229,"wires":[["4d4371a9.91414"],[]]},{"id":"111dadce.9ce092","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.ute_inngangsparti","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":276,"wires":[["4343a0e2.0d5dd"],[]]},{"id":"f1094e00.e5888","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.ute_terrassen","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":40,"wires":[["1c16887d.1d44d8"],[]]},{"id":"c31d6935.cf34c8","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_ute_garasjen","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":86,"wires":[["7c204251.1b3a2c"],[]]},{"id":"ade2b140.3f3bb","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.ute_inngangsparti","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":132,"wires":[["cf2f8da.7b12e7"],[]]},{"id":"adbbf983.fa0e28","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_pergola","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":540,"wires":[["ed52fe2a.daf3d"],[]]},{"id":"ca5ac45d.2f12a8","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_basseng","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":591,"wires":[["24f35697.85c51a"],[]]},{"id":"3298a16c.34907e","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_balkong","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":640,"wires":[["8e03408f.b7169"],[]]},{"id":"b476e643.514668","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_hundehus","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":687,"wires":[["23466b14.490a34"],[]]},{"id":"67be2d1f.5e4cd4","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_pergola","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":323,"wires":[["6106e6a5.30ca88"],[]]},{"id":"85977399.c0687","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_basseng","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":371,"wires":[["e9b205a7.51a3e8"],[]]},{"id":"cf0f867d.229c38","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_balkong","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":419,"wires":[["628af135.818fe"],[]]},{"id":"6ea2d77c.48f7c8","type":"api-current-state","z":"f0fcc3d0.d1cc","name":"Lys = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"switch.stikk_lyslenke_hundehus","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":340,"y":466,"wires":[["cff6215e.b341b"],[]]},{"id":"3b7bd2ed.ef1e2e","type":"inject","z":"f0fcc3d0.d1cc","name":"Tid = 09:00","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"00 09 * * *","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":130,"y":640,"wires":[["adbbf983.fa0e28","ca5ac45d.2f12a8","3298a16c.34907e","b476e643.514668"]]},{"id":"6f357f7b.940fc","type":"inject","z":"f0fcc3d0.d1cc","name":"Tid = 06:00","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"00 06 * * *","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":110,"y":260,"wires":[["67be2d1f.5e4cd4","85977399.c0687","cf0f867d.229c38","6ea2d77c.48f7c8"]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

Ja, så lenge de ikke mister ruten sin til kontrolleren, så er de stabile, hos meg i hvert fall. Mister de ruten sin, så må jeg manuelt "refreshe" dem ved å trykke på sensorene. Jeg er fornøyd med dem.

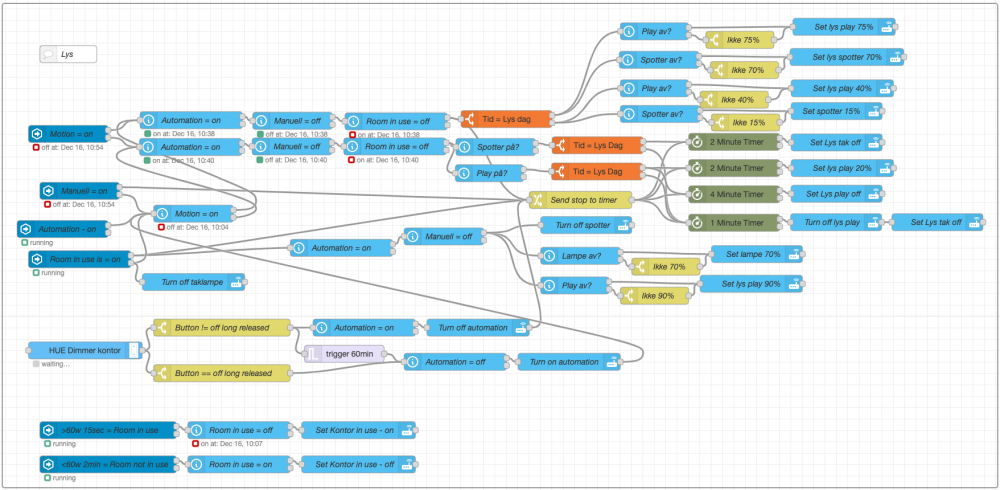

Oppdatert 16/12-20. Prøveprosjektet med HUE dimmeren er ferdig. Flow er ryddet litt og oppdatert med endelig kode. Opprinnelig post: Her er et nytt rom og enda litt utvidet styring av lyset. Spesielt nå som det blir mer hjemmekontor enn normalt, så er det fint at lyset ikke plutselig skrus av når jeg jobber. Jeg løste dette med en Fibaro Wall plug som rapporterer strømbruken til skjermen som også fungerer som docking for min mac. Siden dette er kontoret mitt, så er det rommet hvor jeg har prøveprosjekt med HUE dimmeren. Her forsøker jeg å overstyre automasjonen, i én time eller til off knappen blir holdt inne, hvis HUE dimmeren blir benyttet. Foreløpig virker det som den funksjonen virker ok. Kode: [{"id":"384f77e4.0ac5a8","type":"group","z":"c73cf615.f18078","style":{"stroke":"#999999","stroke-opacity":"1","fill":"none","fill-opacity":"1","label":true,"label-position":"nw","color":"#a4a4a4"},"nodes":["3590dbf9.f45934","58f2dc91.5bfa94","4e531a47.1403f4","55011687.ecb508","2cebcc70.46ae54","7b204c06.1a33d4","e0f2e16e.91a31","f33772d1.d7ed6","735af4c1.cb824c","ece6ead9.2972d8","8f350e96.9950f","856248e2.bea3b8","c149417b.007cd","7fbdfbd7.256dd4","aa83002c.8a2f2","b299693c.e47808","6f7d7315.cc9d5c","85014b30.fa5598","8cfa8ccd.80895","138b412a.fb823f","5f1c7646.eb0b08","e7561d00.823c6","32be2710.0e5378","581eb935.9f2a58","fa102ed.cd34bd","21e9feec.f452c2","ac7b2071.96718","2f0e5fed.7dd29","f3c61e6e.6ee23","3b42ee5e.3971b2","e1ed6dcf.05e05","edf1f733.341bb8","ba0bb07c.aa3a9","4f5bb01e.ae4f1","43efa403.0c4f2c","d79a092f.f6cee8","a43750ab.a9479","cb768e5c.453b4","82a015ff.f9e718","9ee933af.893ea","cf60df67.40b47","f702cbbf.2b9ef8","560add46.1c6cb4","bd9242be.5aae1","cd83b74f.d65b38","f89d54a2.6c9908","512169b7.af6a78","c92944db.668308","e1bab322.2a69f","1dc1fd6.24bbd03","330eecd1.103794","d4715e48.292ca","4d21843e.19dcfc","3823453f.938e6a","365a20ba.d11c7","e9b85204.03b91","867a2082.99458","1cb1ab66.084be5","797ebc06.9d6b64","c60128cd.ebfb98","8a2f9b09.489ea8","f690e08c.6d1b6"],"x":14,"y":51,"w":1749,"h":850},{"id":"3590dbf9.f45934","type":"server-state-changed","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Motion = on","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.motionsensor_kontor","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":130,"y":280,"wires":[["ba0bb07c.aa3a9"],["4f5bb01e.ae4f1"]]},{"id":"58f2dc91.5bfa94","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Manuell = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.manuell_kontoret","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":524,"y":257,"wires":[["f89d54a2.6c9908"],[]]},{"id":"4e531a47.1403f4","type":"time-range-switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Tid = Lys dag","lat":"59.05121","lon":"10.04995","startTime":"06:00","endTime":"23:30","startOffset":0,"endOffset":0,"x":900,"y":254,"wires":[["21e9feec.f452c2","512169b7.af6a78"],["797ebc06.9d6b64","c60128cd.ebfb98"]]},{"id":"55011687.ecb508","type":"stoptimer","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","duration":"2","units":"Minute","payloadtype":"num","payloadval":"0","name":"","x":1300,"y":294,"wires":[["7fbdfbd7.256dd4"],[]]},{"id":"2cebcc70.46ae54","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set lys spotter 70%","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"light","service":"turn_on","entityId":"light.lys_kontor","data":"{\"brightness_pct\":70}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1498,"y":145,"wires":[[]]},{"id":"7b204c06.1a33d4","type":"stoptimer","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","duration":"4","units":"Minute","payloadtype":"num","payloadval":"0","name":"","x":1300,"y":386,"wires":[["8f350e96.9950f"],[]]},{"id":"e0f2e16e.91a31","type":"time-range-switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Tid = Lys Dag","lat":"","lon":"","startTime":"06:20","endTime":"23:30","startOffset":0,"endOffset":0,"x":1060,"y":300,"wires":[["55011687.ecb508"],["6f7d7315.cc9d5c"]]},{"id":"f33772d1.d7ed6","type":"change","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Send stop to timer","rules":[{"t":"set","p":"payload","pt":"msg","to":"stop","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1030,"y":396,"wires":[["55011687.ecb508","7b204c06.1a33d4","6f7d7315.cc9d5c","365a20ba.d11c7"]]},{"id":"735af4c1.cb824c","type":"server-state-changed","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Manuell = on","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.manuell_kontoret","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":150,"y":380,"wires":[["f33772d1.d7ed6"],["ece6ead9.2972d8"]]},{"id":"ece6ead9.2972d8","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Motion = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"binary_sensor.motionsensor_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":350,"y":420,"wires":[["ba0bb07c.aa3a9"],["4f5bb01e.ae4f1"]]},{"id":"8f350e96.9950f","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set Lys play off","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.lys_kontor_play","data":"{\"transition\":5}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1480,"y":385,"wires":[[]]},{"id":"856248e2.bea3b8","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Manuell = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.manuell_kontoret","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":523,"y":302,"wires":[["32be2710.0e5378"],[]]},{"id":"c149417b.007cd","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set lys play 75%","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lys_kontor_play","data":"{\"brightness_pct\":75,\"transition\":1}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1493,"y":92,"wires":[[]]},{"id":"7fbdfbd7.256dd4","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set Lys tak off","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.lys_kontor","data":"{\"transition\":5}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1480,"y":295,"wires":[[]]},{"id":"aa83002c.8a2f2","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set spotter 15%","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lys_kontor","data":"{\"brightness_pct\":15}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1480,"y":240,"wires":[[]]},{"id":"b299693c.e47808","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set lys play 40%","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lys_kontor_play","data":"{\"brightness_pct\":50,\"transition\":1}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1490,"y":200,"wires":[[]]},{"id":"6f7d7315.cc9d5c","type":"stoptimer","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","duration":"1","units":"Minute","payloadtype":"num","payloadval":"0","name":"","x":1300,"y":436,"wires":[["85014b30.fa5598"],[]]},{"id":"85014b30.fa5598","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Turn off lys play","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.lys_kontor_play","data":"{\"transition\":10}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1479,"y":435,"wires":[["8cfa8ccd.80895"]]},{"id":"8cfa8ccd.80895","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set Lys tak off","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.lys_kontor","data":"{\"transition\":5}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1657,"y":435,"wires":[[]]},{"id":"138b412a.fb823f","type":"server-state-changed","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":">60w 15sec = Room in use","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sensor.watt_kontorpult","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"60","halt_if_type":"num","halt_if_compare":"gt","outputs":2,"output_only_on_state_change":true,"for":"15","forType":"num","forUnits":"seconds","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":200,"y":800,"wires":[["867a2082.99458"],[]]},{"id":"5f1c7646.eb0b08","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set Kontor in use - on","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.office_in_use","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":640,"y":800,"wires":[[]]},{"id":"e7561d00.823c6","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set Kontor in use - off","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.office_in_use","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":640,"y":860,"wires":[[]]},{"id":"32be2710.0e5378","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Room in use = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.office_in_use","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":704,"y":302,"wires":[["2f0e5fed.7dd29","4d21843e.19dcfc"],[]]},{"id":"581eb935.9f2a58","type":"server-state-changed","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Room in use is = on","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.office_in_use","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":150,"y":500,"wires":[["f33772d1.d7ed6","e1bab322.2a69f"],["ece6ead9.2972d8","560add46.1c6cb4"]]},{"id":"fa102ed.cd34bd","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Manuell = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.manuell_kontoret","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":790,"y":460,"wires":[["cf60df67.40b47","330eecd1.103794","82a015ff.f9e718"],[]]},{"id":"21e9feec.f452c2","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Spotter av?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1168,"y":150,"wires":[["2cebcc70.46ae54"],["ac7b2071.96718"]]},{"id":"ac7b2071.96718","type":"switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Ikke 70%","property":"data.attributes.brightness","propertyType":"msg","rules":[{"t":"neq","v":"178","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":1318,"y":168,"wires":[["2cebcc70.46ae54"]]},{"id":"2f0e5fed.7dd29","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Spotter på?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":881,"y":303,"wires":[["e0f2e16e.91a31"],[]]},{"id":"f3c61e6e.6ee23","type":"hue-switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"HUE Dimmer kontor","bridge":"9588cc82.3423","sensorid":"65","skipevents":false,"universalevents":false,"x":160,"y":660,"wires":[["a43750ab.a9479","d79a092f.f6cee8"]]},{"id":"3b42ee5e.3971b2","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Turn off automation","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.automation_kontor","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":850,"y":620,"wires":[["f33772d1.d7ed6"]]},{"id":"e1ed6dcf.05e05","type":"trigger","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"","op1":"","op2":"0","op1type":"nul","op2type":"str","duration":"60","extend":true,"overrideDelay":false,"units":"min","reset":"","bytopic":"all","topic":"topic","outputs":1,"x":615,"y":666,"wires":[["43efa403.0c4f2c"]]},{"id":"edf1f733.341bb8","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Turn on automation","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.automation_kontor","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1010,"y":680,"wires":[["ece6ead9.2972d8"]]},{"id":"ba0bb07c.aa3a9","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Automation = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.automation_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":346,"y":256,"wires":[["58f2dc91.5bfa94"],[]]},{"id":"4f5bb01e.ae4f1","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Automation = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.automation_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":345,"y":303,"wires":[["856248e2.bea3b8"],[]]},{"id":"43efa403.0c4f2c","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Automation = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.automation_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":810,"y":680,"wires":[["edf1f733.341bb8"],[]]},{"id":"d79a092f.f6cee8","type":"switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Button == off long released","property":"payload.button","propertyType":"msg","rules":[{"t":"eq","v":"4003","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":400,"y":700,"wires":[["43efa403.0c4f2c"]]},{"id":"a43750ab.a9479","type":"switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Button != off long released","property":"payload.action","propertyType":"msg","rules":[{"t":"neq","v":"4003","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":400,"y":620,"wires":[["e1ed6dcf.05e05","cb768e5c.453b4"]]},{"id":"cb768e5c.453b4","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Automation = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.automation_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":650,"y":620,"wires":[["3b42ee5e.3971b2"],[]]},{"id":"82a015ff.f9e718","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Turn off spotter","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.lys_kontor","data":"{\"transition\":3}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1040,"y":440,"wires":[[]]},{"id":"9ee933af.893ea","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set lampe 70%","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lampe_kontor","data":"{\"brightness\":178,\"transition\":2}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1340,"y":491,"wires":[[]]},{"id":"cf60df67.40b47","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Lampe av?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lampe_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1030,"y":494,"wires":[["9ee933af.893ea"],["f702cbbf.2b9ef8"]]},{"id":"f702cbbf.2b9ef8","type":"switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Ikke 70%","property":"data.attributes.brightness","propertyType":"msg","rules":[{"t":"neq","v":"178","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":1180,"y":513,"wires":[["9ee933af.893ea"]]},{"id":"560add46.1c6cb4","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Turn off taklampe","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.lampe_kontor","data":"{\"transition\":3}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":350,"y":540,"wires":[[]]},{"id":"bd9242be.5aae1","type":"server-state-changed","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"<60w 2min = Room not in use","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sensor.watt_kontorpult","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"60","halt_if_type":"num","halt_if_compare":"lt","outputs":2,"output_only_on_state_change":true,"for":"2","forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":200,"y":860,"wires":[["1cb1ab66.084be5"],[]]},{"id":"cd83b74f.d65b38","type":"comment","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Lys","info":"","x":130,"y":140,"wires":[]},{"id":"f89d54a2.6c9908","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Room in use = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.office_in_use","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":706,"y":258,"wires":[["4e531a47.1403f4","f33772d1.d7ed6"],[]]},{"id":"512169b7.af6a78","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Play av?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_kontor_play","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1160,"y":100,"wires":[["c149417b.007cd"],["c92944db.668308"]]},{"id":"c92944db.668308","type":"switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Ikke 75%","property":"data.attributes.brightness","propertyType":"msg","rules":[{"t":"neq","v":"191","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":1310,"y":115,"wires":[["c149417b.007cd"]]},{"id":"e1bab322.2a69f","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Automation = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.automation_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":610,"y":480,"wires":[["fa102ed.cd34bd"],[]]},{"id":"1dc1fd6.24bbd03","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set lys play 90%","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lys_kontor_play","data":"{\"brightness_pct\":90,\"transition\":3}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1330,"y":543,"wires":[[]]},{"id":"330eecd1.103794","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Play av?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_kontor_play","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1020,"y":546,"wires":[["1dc1fd6.24bbd03"],["d4715e48.292ca"]]},{"id":"d4715e48.292ca","type":"switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Ikke 90%","property":"data.attributes.brightness","propertyType":"msg","rules":[{"t":"neq","v":"230","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":1160,"y":564,"wires":[["1dc1fd6.24bbd03"]]},{"id":"4d21843e.19dcfc","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Play på?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_kontor_play","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":870,"y":349,"wires":[["3823453f.938e6a"],[]]},{"id":"3823453f.938e6a","type":"time-range-switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Tid = Lys Dag","lat":"","lon":"","startTime":"06:20","endTime":"23:30","startOffset":0,"endOffset":0,"x":1059,"y":346,"wires":[["365a20ba.d11c7","7b204c06.1a33d4"],["6f7d7315.cc9d5c"]]},{"id":"365a20ba.d11c7","type":"stoptimer","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","duration":"2","units":"Minute","payloadtype":"num","payloadval":"0","name":"","x":1300,"y":340,"wires":[["e9b85204.03b91"],[]]},{"id":"e9b85204.03b91","type":"api-call-service","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Set lys play 20%","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.lys_kontor_play","data":"{\"brightness_pct\":20,\"transition\":10}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1490,"y":340,"wires":[[]]},{"id":"867a2082.99458","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Room in use = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.office_in_use","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":430,"y":800,"wires":[["5f1c7646.eb0b08"],[]]},{"id":"1cb1ab66.084be5","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Room in use = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.office_in_use","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":430,"y":860,"wires":[["e7561d00.823c6"],[]]},{"id":"797ebc06.9d6b64","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Play av?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_kontor_play","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1160,"y":200,"wires":[["b299693c.e47808"],["a220b8d0.3faa88"]]},{"id":"c60128cd.ebfb98","type":"api-current-state","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Spotter av?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"light.lys_kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":1170,"y":245,"wires":[["aa83002c.8a2f2"],["8a2f9b09.489ea8"]]},{"id":"8a2f9b09.489ea8","type":"switch","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Ikke 15%","property":"data.attributes.brightness","propertyType":"msg","rules":[{"t":"neq","v":"39","vt":"num"}],"checkall":"true","repair":false,"outputs":1,"x":1320,"y":260,"wires":[["aa83002c.8a2f2"]]},{"id":"f690e08c.6d1b6","type":"server-state-changed","z":"c73cf615.f18078","g":"384f77e4.0ac5a8","name":"Automation - on","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.automation_spillrom","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":120,"y":447,"wires":[["ece6ead9.2972d8"],[]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true},{"id":"9588cc82.3423","type":"hue-bridge","name":"Hue SV17 1 etg","bridge":"192.168.3.49","key":"Hjl7Rk2Pp0C44-vdtDHiLgsrg7ATAnAHS3KaHaeF","interval":"3000","disableupdates":false}]

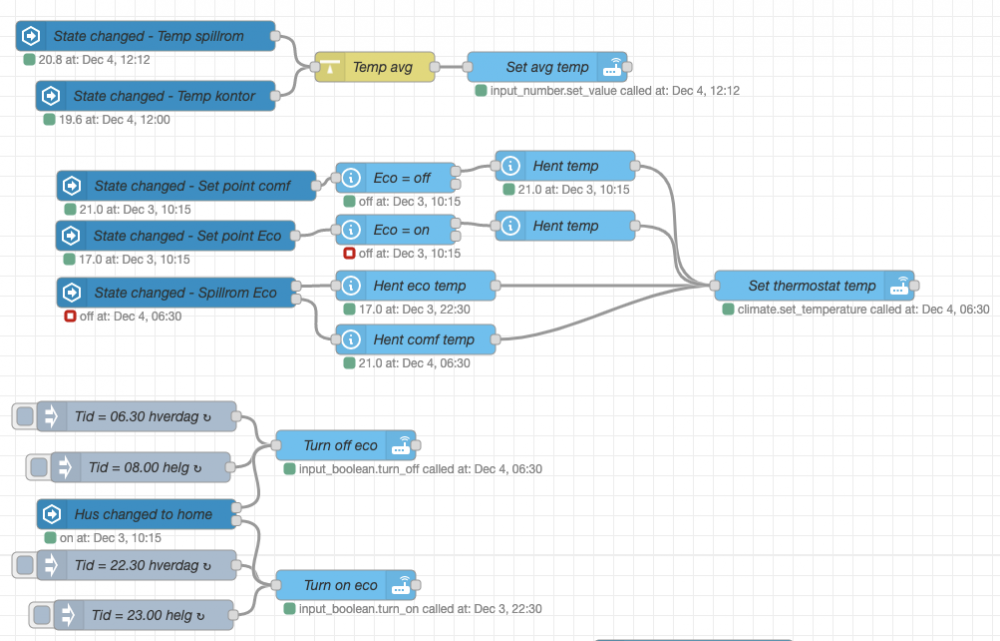

Her er flow for å styre en panelovn. Panelovnen dekker to rom og det er ingen dør i mellom de. Jeg har derfor benyttet Xioami Aqara temperatur og fuktighetssensor på begge rommene og styrer panelovnen etter snittet av de to. I Home Assistant har jeg laget en Generic Thermostat som leser temp og styrer en Fibaro Wall plugg for å skru panelovnen på/av. Jeg har også laget virtuelle enheter for å styre komfort- og økonomi-modus. I denne flowen har jeg en type node som ikke jeg har i noen av de tidligere eksemplene, inject-node. Denne kan brukes for å trigge en flow til gitt tid og gitt dag. Kode: [{"id":"4efeb115.8c62b","type":"server-state-changed","z":"3c46cbf8.e1e0b4","name":"State changed - Temp kontor","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sensor.temperatur_kontor","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"","halt_if_type":"str","halt_if_compare":"is","outputs":1,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":160,"y":840,"wires":[["ef6bfb58.c78f98"]]},{"id":"dce161b.11876a","type":"server-state-changed","z":"3c46cbf8.e1e0b4","name":"State changed - Temp spillrom","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sensor.temperatur_spillrom","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"","halt_if_type":"str","halt_if_compare":"is","outputs":1,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":150,"y":780,"wires":[["ef6bfb58.c78f98"]]},{"id":"ef6bfb58.c78f98","type":"average","z":"3c46cbf8.e1e0b4","name":"Temp avg","topic":"","x":380,"y":811,"wires":[["7e8a897d.b25c98"]]},{"id":"7e8a897d.b25c98","type":"api-call-service","z":"3c46cbf8.e1e0b4","name":"Set avg temp","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_number","service":"set_value","entityId":"input_number.temp_avg_spillrom_kontor","data":"{\"value\":\"{{payload}}\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":553,"y":811,"wires":[[]]},{"id":"2bd19596.2c4bca","type":"server-state-changed","z":"3c46cbf8.e1e0b4","name":"State changed - Set point Eco","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_number.setpoint_spillrom_eco","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"","halt_if_type":"str","halt_if_compare":"is","outputs":1,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":180,"y":980,"wires":[["eb0d79ae.e9cc18"]]},{"id":"eb0d79ae.e9cc18","type":"api-current-state","z":"3c46cbf8.e1e0b4","name":"Eco = on","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.spillrom_eco","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":401,"y":974,"wires":[["404cb5b1.7238fc"],[]]},{"id":"38442988.8a4b06","type":"server-state-changed","z":"3c46cbf8.e1e0b4","name":"State changed - Spillrom Eco","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.spillrom_eco","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":181,"y":1037,"wires":[["2b963406.fd75ac"],["bbcb6d34.ef595"]]},{"id":"2b963406.fd75ac","type":"api-current-state","z":"3c46cbf8.e1e0b4","name":"Hent eco temp","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_number.setpoint_spillrom_eco","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":421,"y":1030,"wires":[["b2a70ff3.a3853"]]},{"id":"b2a70ff3.a3853","type":"api-call-service","z":"3c46cbf8.e1e0b4","name":"Set thermostat temp","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"climate","service":"set_temperature","entityId":"climate.spillrom","data":"{\"temperature\":{{payload}}}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":821,"y":1030,"wires":[[]]},{"id":"bbcb6d34.ef595","type":"api-current-state","z":"3c46cbf8.e1e0b4","name":"Hent comf temp","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_number.setpoint_spillrom_comf","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":421,"y":1084,"wires":[["b2a70ff3.a3853"]]},{"id":"d322b35b.a887","type":"server-state-changed","z":"3c46cbf8.e1e0b4","name":"State changed - Set point comf","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_number.setpoint_spillrom_comf","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"","halt_if_type":"str","halt_if_compare":"is","outputs":1,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":191,"y":930,"wires":[["4849a701.d28658"]]},{"id":"4849a701.d28658","type":"api-current-state","z":"3c46cbf8.e1e0b4","name":"Eco = off","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"off","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.spillrom_eco","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":401,"y":922,"wires":[["5d148866.f4b728"],[]]},{"id":"5d148866.f4b728","type":"api-current-state","z":"3c46cbf8.e1e0b4","name":"Hent temp","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_number.setpoint_spillrom_comf","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":571,"y":910,"wires":[["b2a70ff3.a3853"]]},{"id":"404cb5b1.7238fc","type":"api-current-state","z":"3c46cbf8.e1e0b4","name":"Hent temp","server":"ac20270b.4d8de8","version":1,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_number.setpoint_spillrom_eco","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":571,"y":970,"wires":[["b2a70ff3.a3853"]]},{"id":"eb4de0f0.6253f","type":"inject","z":"3c46cbf8.e1e0b4","name":"Tid = 06.30 hverdag","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"30 06 * * 1,2,3,4,5","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":141,"y":1161,"wires":[["86c2ce64.a0b98"]]},{"id":"bdfdb567.b589b8","type":"inject","z":"3c46cbf8.e1e0b4","name":"Tid = 08.00 helg","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"00 08 * * 6,0","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":145,"y":1212,"wires":[["86c2ce64.a0b98"]]},{"id":"86c2ce64.a0b98","type":"api-call-service","z":"3c46cbf8.e1e0b4","name":"Turn off eco","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.spillrom_eco","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":351,"y":1190,"wires":[[]]},{"id":"4894bafe.dae8a4","type":"inject","z":"3c46cbf8.e1e0b4","name":"Tid = 22.30 hverdag","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"30 22 * * 1,2,3,4,5","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":141,"y":1310,"wires":[["56582f3a.3c1b1"]]},{"id":"e19d2e7.1be3cd","type":"inject","z":"3c46cbf8.e1e0b4","name":"Tid = 23.00 helg","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"00 23 * * 6,0","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":148,"y":1360,"wires":[["56582f3a.3c1b1"]]},{"id":"56582f3a.3c1b1","type":"api-call-service","z":"3c46cbf8.e1e0b4","name":"Turn on eco","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.spillrom_eco","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":351,"y":1330,"wires":[[]]},{"id":"d67913ad.ff407","type":"server-state-changed","z":"3c46cbf8.e1e0b4","name":"Hus changed to home","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.hus_home","entityidfiltertype":"exact","outputinitially":true,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":141,"y":1259,"wires":[["86c2ce64.a0b98"],["56582f3a.3c1b1"]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

De er nesten så nærme de kan være, 30cm 🙂

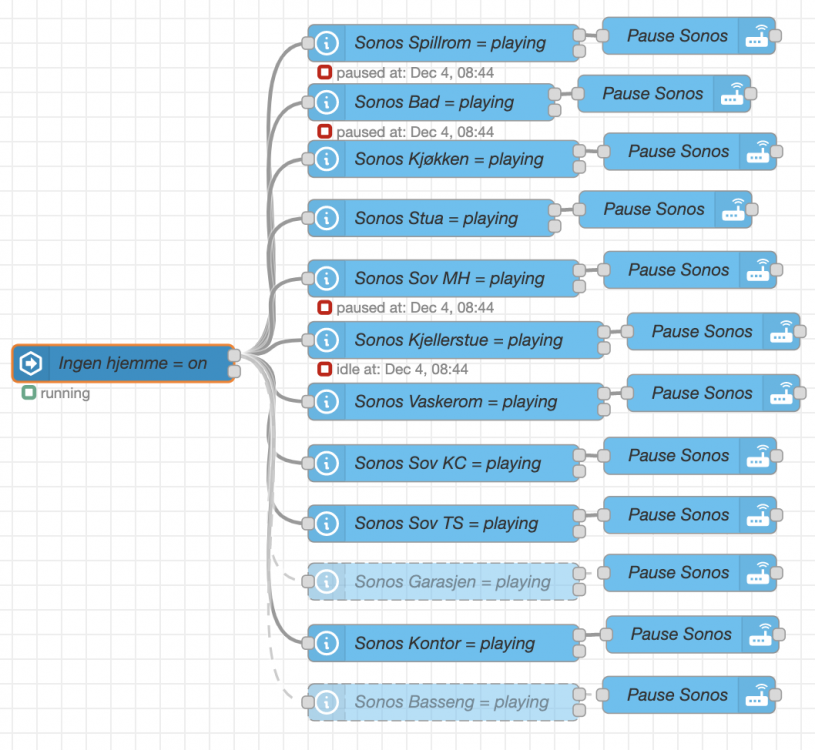

Noen ganger dro vi fra huset med musikken stående på. Ikke noe stor sak, men heller ikke nødvendig med litt automasjon 🙂 Kode: [{"id":"d2c09d6b.99971","type":"server-state-changed","z":"cf70e5ae.0af7d8","name":"Ingen hjemme = on","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.ingen_hjemme","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":"","forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":130,"y":800,"wires":[["1c18221b.713e5e","4e20b760.485f18","b4700fda.ce869","158f239c.d218cc","b636880a.a90088","a0002f12.f7c4b","85a2f9b.67da108","caf5d17e.7a4e9","8e0ffa73.99de98","4aca48ba.f73d48","59805cbe.aa0474","9b4c812e.143b1"],[]]},{"id":"1c18221b.713e5e","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Spillrom = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.spillrom","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":540,"wires":[["fdf3da66.581118"],[]]},{"id":"fdf3da66.581118","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.spillrom","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":589,"y":534,"wires":[[]]},{"id":"4e20b760.485f18","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Bad = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.bathroom","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":380,"y":588,"wires":[["1711ef4a.6ea521"],[]]},{"id":"1711ef4a.6ea521","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.bathroom","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":569,"y":581,"wires":[[]]},{"id":"b4700fda.ce869","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Kjøkken = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.kjokken","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":634,"wires":[["6c0c939f.6e388c"],[]]},{"id":"6c0c939f.6e388c","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.kitchen","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":590,"y":628,"wires":[[]]},{"id":"158f239c.d218cc","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Stua = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.stue","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":380,"y":682,"wires":[["a69669be.853488"],[]]},{"id":"a69669be.853488","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.atv_room","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":570,"y":675,"wires":[[]]},{"id":"b636880a.a90088","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Sov MH = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.sov_mh","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":731,"wires":[["c6b37c6f.8b458"],[]]},{"id":"c6b37c6f.8b458","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.spillrom","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":590,"y":724,"wires":[[]]},{"id":"a0002f12.f7c4b","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Kjellerstue = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.kjellerstue","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":400,"y":781,"wires":[["65627808.3ccd98"],[]]},{"id":"65627808.3ccd98","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.kjellerstue","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":609,"y":774,"wires":[[]]},{"id":"85a2f9b.67da108","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Vaskerom = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.vaskerom","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":400,"y":831,"wires":[["7d8d6621.ec80d8"],[]]},{"id":"7d8d6621.ec80d8","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.vaskerommet","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":609,"y":824,"wires":[[]]},{"id":"caf5d17e.7a4e9","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Sov KC = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.sov_kc","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":881,"wires":[["7d698794.a56cf8"],[]]},{"id":"7d698794.a56cf8","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.hagen","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":590,"y":875,"wires":[[]]},{"id":"8e0ffa73.99de98","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Sov TS = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.sov_ts","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":930,"wires":[["99e4bad5.6b9888"],[]]},{"id":"99e4bad5.6b9888","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.sov_kct","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":590,"y":923,"wires":[[]]},{"id":"4aca48ba.f73d48","type":"api-current-state","z":"cf70e5ae.0af7d8","d":true,"name":"Sonos Garasjen = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.garasjen","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":977,"wires":[["4c4bd53f.7e51cc"],[]]},{"id":"4c4bd53f.7e51cc","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.garasjen","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":590,"y":970,"wires":[[]]},{"id":"59805cbe.aa0474","type":"api-current-state","z":"cf70e5ae.0af7d8","name":"Sonos Kontor = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.kontor","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":1027,"wires":[["541b1884.4d1cc8"],[]]},{"id":"541b1884.4d1cc8","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.terrassen","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":592,"y":1020,"wires":[[]]},{"id":"9b4c812e.143b1","type":"api-current-state","z":"cf70e5ae.0af7d8","d":true,"name":"Sonos Basseng = playing","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"playing","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"media_player.basseng","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":390,"y":1075,"wires":[["b47dfef6.9f83a"],[]]},{"id":"b47dfef6.9f83a","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Pause Sonos","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"media_player","service":"media_pause","entityId":"media_player.basseng","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":589,"y":1069,"wires":[[]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

Her har jeg et eksempel hvor jeg bruker en Xiaomi Aqara button for å skru lys automasjon av/på og styre Ikea rullegardiner. De to rommene jeg styrer her har normalt bevegelsessensor og automasjon for styring av lyset, men rommet brukes for dagsoving til minsten i helgen og da er det litt upraktisk at lyset går på ved bevegelse. Ett klikk, rommet settes i auto og rullegardinene går opp. To klikk, rommet settes i manuell og for å få bekreftelse på det så flasher lyset Tre klikk, rommet settes i manuell, den ene taklampen settes til 5% de andre skrus av, rullegardinene går ned. Kode: [{"id":"16f99d2a.744dd3","type":"switch","z":"cf70e5ae.0af7d8","name":"Get Event id Spillrom Aqara Button","property":"payload.event.id","propertyType":"msg","rules":[{"t":"eq","v":"bryter_spillrom_scener","vt":"str"}],"checkall":"false","repair":false,"outputs":1,"x":396,"y":100,"wires":[["5b0b6400.17928c"]]},{"id":"5b0b6400.17928c","type":"switch","z":"cf70e5ae.0af7d8","name":"Get clicks","property":"payload.event.event","propertyType":"msg","rules":[{"t":"eq","v":"1002","vt":"str"},{"t":"eq","v":"1004","vt":"str"},{"t":"eq","v":"1006","vt":"str"},{"t":"eq","v":"1008","vt":"str"}],"checkall":"false","repair":false,"outputs":4,"x":620,"y":100,"wires":[["e2f10785.ceb688"],["12cb2dd2.2a8ba2"],["e67c125e.61b3d"],[]]},{"id":"e4181753.f186b8","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Set lys taklampe spillrom 5%","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.spillrom_taklampe","data":"{\"kelvin\":2256,\"brightness_pct\":5}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1130,"y":143,"wires":[["993af6d.f775308"]]},{"id":"993af6d.f775308","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Turn off lys spillrom spot 1 & 2","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.spillrom_spot_1, light.spillrom_spot_2","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1400,"y":143,"wires":[["c0cbce5a.bf357"]]},{"id":"c0cbce5a.bf357","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Rullegardiner kontor og spillrom ned","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"cover","service":"close_cover","entityId":"cover.blind_kontor, cover.blind_spillrom","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1701,"y":143,"wires":[[]]},{"id":"e67c125e.61b3d","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Set spillrom og kontor manuell - on","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.manuell_spillrommet, input_boolean.manuell_kontoret","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":853,"y":143,"wires":[["e4181753.f186b8"]]},{"id":"9bb13e2e.10ff2","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Rullegardiner kontor og spillrom opp","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"cover","service":"open_cover","entityId":"cover.blind_kontor, cover.blind_spillrom","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1163,"y":44,"wires":[[]]},{"id":"e2f10785.ceb688","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Set spillrom og kontor manuell - off","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.manuell_spillrommet, input_boolean.manuell_kontoret","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":855,"y":44,"wires":[["9bb13e2e.10ff2"]]},{"id":"12cb2dd2.2a8ba2","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Set spillrom og kontor manuell - on","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.manuell_spillrommet, input_boolean.manuell_kontoret","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":855,"y":94,"wires":[["6f935438.78f7cc"]]},{"id":"6f935438.78f7cc","type":"api-call-service","z":"cf70e5ae.0af7d8","name":"Flash light","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"light","service":"turn_on","entityId":"light.lys_spillrom_taklys","data":"{\"flash\":\"short\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1085,"y":94,"wires":[[]]},{"id":"f4571ec5.48cd5","type":"server-events","z":"cf70e5ae.0af7d8","name":"","server":"5f450dd2.c65454","event_type":"deconz_event","exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"waitForRunning":true,"x":133,"y":100,"wires":[["16f99d2a.744dd3"]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true},{"id":"5f450dd2.c65454","type":"server","name":"Home Assistant - rpi4-deconz","legacy":false,"addon":false,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

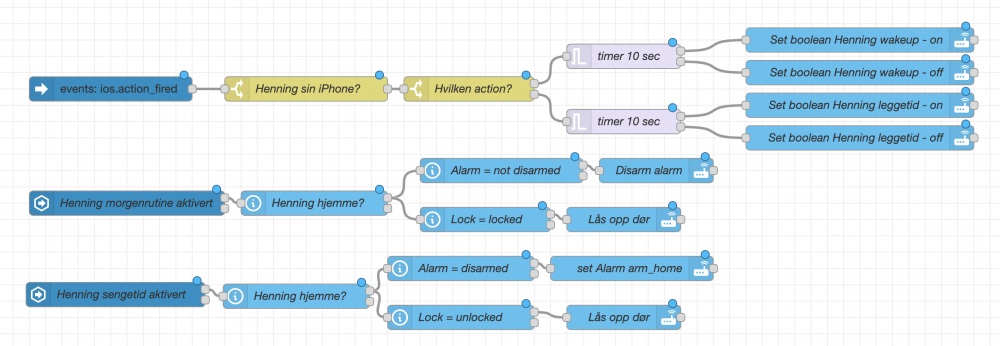

Her har jeg en flow, som ved hjelp av min iPhone styrer alarm og dørlåsen. Jeg er litt usikker på det riktige navnet for denne funksjonen i iOS, men tror det er bedtime. Med bedtime kan jeg fortelle når jeg har planer om å legge meg og hvilket klokkeslett jeg skal opp. Med denne informasjonen kan jeg med kombinasjonen Apple sin app "Shortcuts" og mobil appen til Home Assitant trigge en event som plukkes opp i Node-RED. Den øverste flow'en lytter på events i kategori "ios.action_fired". Så sjekker jeg om det er min telefon som har trigget det, og hvilken event min telefon trigget. De to jeg bruker her har jeg kalt sengetid og morgenrutine. Jeg har splittet opp flow'en her i to og i den første trigger jeg to virtuelle noder (input_boolean i HA). De igjen trigger flow'en under som så kjører automasjonen for alarm og dør. Grunnen til at jeg trigger disse virtuelle nodene er for å ha muligheten til å kjøre denne automasjon manuelt, eller på annen måte enn via min mobil. Da kan disse virtuelle nodene gjenbrukes og jeg slipper å skrive den delen av automasjonen på nytt. Koden for de som måtte ønske (jeg har maskert noe info her siden det er automasjon av alarm og dørlås): [{"id":"d9642849.b25d38","type":"server-state-changed","z":"9bb0c125.f0cf1","name":"Henning morgenrutine aktivert","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.****_wakeup_henning","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":260,"y":480,"wires":[["74c41e6c.ace89"],[]]},{"id":"74c41e6c.ace89","type":"api-current-state","z":"9bb0c125.f0cf1","name":"Henning hjemme?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.virtual_henning","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":490,"y":480,"wires":[["5da8efe0.b3752","4eaaaad0.3df514"],[]]},{"id":"5da8efe0.b3752","type":"api-current-state","z":"9bb0c125.f0cf1","name":"Alarm = not disarmed","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"disarmed","halt_if_type":"str","halt_if_compare":"is_not","override_topic":false,"entity_id":"alarm_control_panel.****","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":720,"y":440,"wires":[["6db0162b.253d98"],[]]},{"id":"4eaaaad0.3df514","type":"api-current-state","z":"9bb0c125.f0cf1","name":"Lock = locked","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"locked","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"lock.****","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":700,"y":500,"wires":[["3653f64b.6d21ea"],[]]},{"id":"3653f64b.6d21ea","type":"api-call-service","z":"9bb0c125.f0cf1","name":"Lås opp dør","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"lock","service":"unlock","entityId":"lock.****","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":870,"y":500,"wires":[[]]},{"id":"6db0162b.253d98","type":"api-call-service","z":"9bb0c125.f0cf1","name":"Disarm alarm","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"alarm_control_panel","service":"alarm_disarm","entityId":"alarm_control_panel.*****","data":"{\"code\":\"****\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":910,"y":440,"wires":[[]]},{"id":"bfe9a1c8.54eee","type":"server-events","z":"9bb0c125.f0cf1","name":"","server":"ac20270b.4d8de8","event_type":"ios.action_fired","exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"waitForRunning":true,"x":240,"y":340,"wires":[["c26f8820.aa3df8"]]},{"id":"c26f8820.aa3df8","type":"switch","z":"9bb0c125.f0cf1","name":"Henning sin iPhone?","property":"payload.event.sourceDeviceID","propertyType":"msg","rules":[{"t":"eq","v":"henning_lauritsens****","vt":"str"}],"checkall":"false","repair":false,"outputs":1,"x":480,"y":340,"wires":[["4edf9a67.643b54"]]},{"id":"4edf9a67.643b54","type":"switch","z":"9bb0c125.f0cf1","name":"Hvilken action?","property":"payload.event.actionName","propertyType":"msg","rules":[{"t":"eq","v":"morgenrutine","vt":"str"},{"t":"eq","v":"sengetid","vt":"str"}],"checkall":"false","repair":false,"outputs":2,"x":680,"y":340,"wires":[["2603f666.572fca"],["3ba9a64e.99a9aa"]]},{"id":"5a62ffae.4af44","type":"api-call-service","z":"9bb0c125.f0cf1","name":"Set boolean Henning wakeup - on","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.****_wakeup_henning","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1160,"y":280,"wires":[[]]},{"id":"2603f666.572fca","type":"trigger","z":"9bb0c125.f0cf1","name":"timer 10 sec","op1":"ON","op2":"OFF","op1type":"str","op2type":"str","duration":"10","extend":false,"overrideDelay":false,"units":"s","reset":"","bytopic":"all","topic":"topic","outputs":2,"x":870,"y":300,"wires":[["5a62ffae.4af44"],["f9eac70b.1df728"]]},{"id":"f9eac70b.1df728","type":"api-call-service","z":"9bb0c125.f0cf1","name":"Set boolean Henning wakeup - off","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.****_wakeup_henning","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1160,"y":320,"wires":[[]]},{"id":"e4a9c676.9c87d8","type":"api-call-service","z":"9bb0c125.f0cf1","name":"Set boolean Henning leggetid - on","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_on","entityId":"input_boolean.****_wakeup_henning","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1160,"y":360,"wires":[[]]},{"id":"3ba9a64e.99a9aa","type":"trigger","z":"9bb0c125.f0cf1","name":"timer 10 sec","op1":"ON","op2":"OFF","op1type":"str","op2type":"str","duration":"10","extend":false,"overrideDelay":false,"units":"s","reset":"","bytopic":"all","topic":"topic","outputs":2,"x":870,"y":380,"wires":[["e4a9c676.9c87d8"],["6b53a769.3bfe08"]]},{"id":"6b53a769.3bfe08","type":"api-call-service","z":"9bb0c125.f0cf1","name":"Set boolean Henning leggetid - off","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"input_boolean","service":"turn_off","entityId":"input_boolean.****_wakeup_henning","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":1160,"y":400,"wires":[[]]},{"id":"3a635327.66a01c","type":"api-current-state","z":"9bb0c125.f0cf1","name":"Henning hjemme?","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"on","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"input_boolean.virtual_henning","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":468,"y":594,"wires":[["88497e83.97f43","f762608a.98c5d"],[]]},{"id":"88497e83.97f43","type":"api-current-state","z":"9bb0c125.f0cf1","name":"Alarm = disarmed","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"disarmed","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"alarm_control_panel.*****","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":670,"y":560,"wires":[["87a4fd17.bd845"],[]]},{"id":"f762608a.98c5d","type":"api-current-state","z":"9bb0c125.f0cf1","name":"Lock = unlocked","server":"ac20270b.4d8de8","version":1,"outputs":2,"halt_if":"unlocked","halt_if_type":"str","halt_if_compare":"is","override_topic":false,"entity_id":"lock.****","state_type":"str","state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","blockInputOverrides":false,"x":670,"y":620,"wires":[["fb640f08.a2f94"],[]]},{"id":"fb640f08.a2f94","type":"api-call-service","z":"9bb0c125.f0cf1","name":"Lås opp dør","server":"ac20270b.4d8de8","version":1,"debugenabled":false,"service_domain":"lock","service":"lock","entityId":"lock.****","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":870,"y":620,"wires":[[]]},{"id":"87a4fd17.bd845","type":"api-call-service","z":"9bb0c125.f0cf1","name":"set Alarm arm_home","server":"ac20270b.4d8de8","version":1,"debugenabled":true,"service_domain":"alarm_control_panel","service":"alarm_arm_home","entityId":"alarm_control_panel.*****","data":"{\"code\":\"****\"}","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":880,"y":560,"wires":[[]]},{"id":"48f27e69.1c71e","type":"server-state-changed","z":"9bb0c125.f0cf1","name":"Henning sengetid aktivert","server":"ac20270b.4d8de8","version":1,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_boolean.****_bedtime_henning","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"x":246,"y":592,"wires":[["3a635327.66a01c"],[]]},{"id":"ac20270b.4d8de8","type":"server","name":"Home Assistant","legacy":false,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true}]

Jeg forsøker nå med @daniel.h.iversen sin komponent, men får ikke kontakt med min airthings. Virker ikke som min raspberry klarer å kommunisere med airthings. Her er min konfig og log. På sensoren sin MAC'adresse har jeg frosøkt med og uten "BLE_" sensor.yaml - platform: airthings_wave scan_interval: 1150 mac: A4:34:F1:91:ED:1C plus: false known_devices.yaml: ble_a4_34_f1_91_ed_1c: name: AirThings Wave mac: BLE_A4:34:F1:91:ED:1C track: false Log: Traceback (most recent call last): File "/config/custom_components/airthings_wave/airthings.py", line 129, in _get_readings self._connect() File "/config/custom_components/airthings_wave/airthings.py", line 81, in _connect self._device = bluepy.btle.Peripheral(self._mac) File "/usr/local/lib/python3.8/site-packages/bluepy/btle.py", line 391, in __init__ self._connect(deviceAddr, addrType, iface) File "/usr/local/lib/python3.8/site-packages/bluepy/btle.py", line 439, in _connect raise BTLEDisconnectError("Failed to connect to peripheral %s, addr type: %s" % (addr, addrType), rsp) bluepy.btle.BTLEDisconnectError: Failed to connect to peripheral A4:34:F1:91:ED:1C, addr type: public
