SveinHa

ALLE andre plugger med effektmåling har kWh teller så det det hadde vært veldig flott om det kunne dukke opp en slik funksjon i denne også etterhvert.

Det ser for meg ut som et ganske strengt rutenett der hver enkelt objekt grupperes i en eller flere kolonner og rekkefølgen av objektene og rekkefølgen av kolonnene kan modifiseres i /View/Dashboard menyen. Hvert enkelt objekt kan endres i bredde men beholder høyde/bredde forholdet. Med dette som utgangspunkt så har en jo en del begrensninger men får også en veldig konsistent utseende. Fargepalette er Light, Dark og Custom så en kan jo trikse en god del på den siden og. Mye roteprogrammering men her er flowen min for bildet over så langt, henter data fra både HS4 og MQTT: [{"id":"bd6892582b896458","type":"tab","label":"HMI","disabled":false,"info":"Node Red UI"},{"id":"2b070f1c4f123439","type":"inject","z":"bd6892582b896458","name":"","props":[{"p":"topic","vt":"str"}],"repeat":"10","crontab":"","once":false,"onceDelay":0.1,"topic":"sync","x":90,"y":480,"wires":[["68aeab8d8cc0a568","24c96b0a09e51a79","f4628910ddbd0842"]]},{"id":"b0bd0bee704ca2a2","type":"mqtt in","z":"bd6892582b896458","name":"","topic":"Pool/TempOutside","qos":"2","datatype":"auto","broker":"6db118ed1b0c56de","nl":false,"rap":true,"rh":0,"x":110,"y":740,"wires":[["8f6820eaab18ff56","50722e1696144c01"]]},{"id":"8f6820eaab18ff56","type":"ui_chart","z":"bd6892582b896458","name":"","group":"394dcffd2bbde9fc","order":2,"width":0,"height":0,"label":"TempOutside","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":"24","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":890,"y":720,"wires":[[]]},{"id":"447d83713bc15202","type":"mqtt in","z":"bd6892582b896458","name":"","topic":"Pool/TempWater","qos":"2","datatype":"auto","broker":"6db118ed1b0c56de","nl":false,"rap":true,"rh":0,"x":100,"y":620,"wires":[["181b1ea5b01130aa"]]},{"id":"059b0a959ff9cc50","type":"mqtt in","z":"bd6892582b896458","name":"","topic":"Pool/TempDome","qos":"2","datatype":"auto","broker":"6db118ed1b0c56de","nl":false,"rap":true,"rh":0,"x":100,"y":680,"wires":[["f63728a2287667ec"]]},{"id":"f8b50f685fa55795","type":"ui_chart","z":"bd6892582b896458","name":"","group":"45fc21be8d63c5ff","order":3,"width":0,"height":0,"label":"TempOutside","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":"24","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1100,"y":740,"wires":[[]]},{"id":"6a43f2652264b1ab","type":"ui_chart","z":"bd6892582b896458","name":"","group":"47a266d7202a6d2f","order":1,"width":0,"height":0,"label":"TempWater","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"25","ymax":"35","removeOlder":"24","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1100,"y":660,"wires":[[]]},{"id":"7007c23f63671f43","type":"ui_chart","z":"bd6892582b896458","name":"","group":"45fc21be8d63c5ff","order":2,"width":0,"height":0,"label":"TempDome","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":"24","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1100,"y":700,"wires":[[]]},{"id":"24c96b0a09e51a79","type":"hs-device","z":"bd6892582b896458","name":"Uteområde Pool Pool VP Aeon Labs Switch Pool VP W","device":"581","server":"8cea2f7d775df12f","feature":"583","reportonstartup":false,"x":560,"y":460,"wires":[["e27f2d3db5e9f6f9"]]},{"id":"873e9689c2ac0a83","type":"ui_gauge","z":"bd6892582b896458","name":"","group":"b31303479769b0ef","order":3,"width":0,"height":0,"gtype":"donut","title":"VP W","label":"W","format":"{{value}}","min":0,"max":"3500","colors":["#00b500","#e6e600","#ca3838"],"seg1":"2500","seg2":"3000","className":"","x":1250,"y":460,"wires":[]},{"id":"80cabf4d730c69e9","type":"hs-device","z":"bd6892582b896458","name":"Uteområde Pool Pool VP Aeon Labs Switch Pool VP Switch","device":"581","server":"8cea2f7d775df12f","feature":"587","reportonstartup":false,"x":300,"y":120,"wires":[["97a96b7eb024e484"]]},{"id":"2c12c58c597facb6","type":"ui_switch","z":"bd6892582b896458","name":"","label":"VP SW","tooltip":"","group":"b31303479769b0ef","order":3,"width":0,"height":0,"passthru":false,"decouple":"true","topic":"payload.control.status","topicType":"str","style":"","onvalue":"1","onvalueType":"num","onicon":"","oncolor":"","offvalue":"0","offvalueType":"num","officon":"","offcolor":"","animate":false,"className":"","x":780,"y":120,"wires":[["a0309c8e844301eb"]]},{"id":"26ea40c467b040f9","type":"ui_chart","z":"bd6892582b896458","name":"","group":"47a266d7202a6d2f","order":3,"width":0,"height":0,"label":"VP W","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"0","ymax":"3500","removeOlder":"24","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1080,"y":620,"wires":[[]]},{"id":"e27f2d3db5e9f6f9","type":"function","z":"bd6892582b896458","name":"Extract Value","func":"var svar = \"\";\nvar value=msg.payload.value;\nsvar = {payload:value.toFixed(0)};\nreturn svar;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":890,"y":460,"wires":[["0b0d4068d4db0acd","6e6db3683ec2140b"]]},{"id":"bcb299f99d8057c2","type":"ui_gauge","z":"bd6892582b896458","name":"","group":"b31303479769b0ef","order":3,"width":0,"height":0,"gtype":"donut","title":"Filtersirk","label":"W","format":"{{value}}","min":0,"max":"500","colors":["#ffff00","#73d216","#ca3838"],"seg1":"330","seg2":"400","className":"","x":1090,"y":520,"wires":[]},{"id":"a98903487fdc51b7","type":"function","z":"bd6892582b896458","name":"Extract Value","func":"var svar = \"\";\nvar value=msg.payload.value;\nsvar = {payload:value.toFixed(0)};\nreturn svar;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":890,"y":520,"wires":[["bcb299f99d8057c2","87e6ed5553c1cfea"]]},{"id":"68aeab8d8cc0a568","type":"hs-device","z":"bd6892582b896458","name":"Uteområde Pool Pool Filter Fibaro Switch Pool Filter Power","device":"1117","server":"8cea2f7d775df12f","feature":"1122","reportonstartup":true,"x":580,"y":520,"wires":[["a98903487fdc51b7"]]},{"id":"0b0d4068d4db0acd","type":"show-value","z":"bd6892582b896458","name":"","path":"","x":920,"y":620,"wires":[["26ea40c467b040f9"]]},{"id":"50722e1696144c01","type":"show-value","z":"bd6892582b896458","name":"","path":"","x":290,"y":740,"wires":[["f8b50f685fa55795","c26e44f1ef456505"]]},{"id":"6e6db3683ec2140b","type":"show-value","z":"bd6892582b896458","name":"","path":"","x":1090,"y":460,"wires":[["873e9689c2ac0a83"]]},{"id":"48c4e3aebcd831c6","type":"change","z":"bd6892582b896458","name":"Av","rules":[{"t":"set","p":"topic","pt":"msg","to":"control","tot":"str"},{"t":"set","p":"payload","pt":"msg","to":"{\"status\":\"OFF\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1070,"y":140,"wires":[["64e07103c1553251"]]},{"id":"17e31f8813594c62","type":"change","z":"bd6892582b896458","name":"På","rules":[{"t":"set","p":"topic","pt":"msg","to":"control","tot":"str"},{"t":"set","p":"payload","pt":"msg","to":"{\"status\":\"ON\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1070,"y":100,"wires":[["64e07103c1553251"]]},{"id":"64e07103c1553251","type":"json","z":"bd6892582b896458","name":"","property":"payload","action":"","pretty":false,"x":1210,"y":120,"wires":[["80cabf4d730c69e9"]]},{"id":"a0309c8e844301eb","type":"switch","z":"bd6892582b896458","name":"","property":"payload","propertyType":"msg","rules":[{"t":"eq","v":"1","vt":"num"},{"t":"eq","v":"0","vt":"num"}],"checkall":"true","repair":true,"outputs":2,"x":930,"y":120,"wires":[["17e31f8813594c62"],["48c4e3aebcd831c6"]]},{"id":"8152c53f411495af","type":"ui_chart","z":"bd6892582b896458","name":"","group":"47a266d7202a6d2f","order":3,"width":0,"height":0,"label":"Filter W","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"0","ymax":"500","removeOlder":"24","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1080,"y":560,"wires":[[]]},{"id":"87e6ed5553c1cfea","type":"show-value","z":"bd6892582b896458","name":"","path":"","x":910,"y":560,"wires":[["8152c53f411495af"]]},{"id":"f63728a2287667ec","type":"show-value","z":"bd6892582b896458","name":"","path":"","x":290,"y":680,"wires":[["7007c23f63671f43"]]},{"id":"181b1ea5b01130aa","type":"show-value","z":"bd6892582b896458","name":"","path":"","x":290,"y":620,"wires":[["6a43f2652264b1ab"]]},{"id":"eb838059898d3fdc","type":"hs-device","z":"bd6892582b896458","name":"Uteområde Pool Pool Filter Fibaro Switch Pool Filter Switch","device":"1117","server":"8cea2f7d775df12f","feature":"1123","reportonstartup":false,"x":300,"y":240,"wires":[["15b7f60e9e8f9a65"]]},{"id":"72e2b0155c15c2a7","type":"ui_switch","z":"bd6892582b896458","name":"","label":"FilterSW","tooltip":"","group":"b31303479769b0ef","order":3,"width":0,"height":0,"passthru":false,"decouple":"true","topic":"payload.control.status","topicType":"str","style":"","onvalue":"1","onvalueType":"num","onicon":"","oncolor":"","offvalue":"0","offvalueType":"num","officon":"","offcolor":"","animate":false,"className":"","x":760,"y":240,"wires":[["b774a2faac9275e6"]]},{"id":"aff52e931bc694c8","type":"change","z":"bd6892582b896458","name":"Av","rules":[{"t":"set","p":"topic","pt":"msg","to":"control","tot":"str"},{"t":"set","p":"payload","pt":"msg","to":"{\"status\":\"OFF\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1050,"y":260,"wires":[["c234bf11af45b0a8"]]},{"id":"c234bf11af45b0a8","type":"json","z":"bd6892582b896458","name":"","property":"payload","action":"","pretty":false,"x":1190,"y":240,"wires":[["eb838059898d3fdc"]]},{"id":"e390ae5cb88c5ade","type":"change","z":"bd6892582b896458","name":"På","rules":[{"t":"set","p":"topic","pt":"msg","to":"control","tot":"str"},{"t":"set","p":"payload","pt":"msg","to":"{\"status\":\"ON\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":1050,"y":220,"wires":[["c234bf11af45b0a8"]]},{"id":"b774a2faac9275e6","type":"switch","z":"bd6892582b896458","name":"","property":"payload","propertyType":"msg","rules":[{"t":"eq","v":"1","vt":"num"},{"t":"eq","v":"0","vt":"num"}],"checkall":"true","repair":true,"outputs":2,"x":890,"y":240,"wires":[["e390ae5cb88c5ade"],["aff52e931bc694c8"]]},{"id":"f4628910ddbd0842","type":"hs-device","z":"bd6892582b896458","name":"Bolig Kjøkken Beveg Kjøk Aeon Labs Multilevel Sensor Beveg Kjøk Temperature","device":"83","server":"8cea2f7d775df12f","feature":"87","reportonstartup":true,"x":440,"y":340,"wires":[["33af4e4f3bf9e3b9"]]},{"id":"33af4e4f3bf9e3b9","type":"function","z":"bd6892582b896458","name":"Extract Value","func":"var svar = \"\";\nvar value=msg.payload.value;\nsvar = {payload:value.toFixed(1)};\nreturn svar;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":890,"y":340,"wires":[["9774175638722593"]]},{"id":"9774175638722593","type":"show-value","z":"bd6892582b896458","name":"","path":"","x":690,"y":380,"wires":[["d0dad447410a790e","b109a4a06c64234c"]]},{"id":"d0dad447410a790e","type":"ui_chart","z":"bd6892582b896458","name":"","group":"ab0b4b6271303101","order":2,"width":0,"height":0,"label":"Temp Kjøkken","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":"24","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":880,"y":380,"wires":[[]]},{"id":"15b7f60e9e8f9a65","type":"function","z":"bd6892582b896458","name":"Extract Value","func":"var svar = \"\";\nvar value=msg.payload.status;\nif (value == \"On\") {\nsvar = {payload:1};\nreturn svar}\nif (value == \"Off\") {\nsvar = {payload:0};\nreturn svar}","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":610,"y":240,"wires":[["72e2b0155c15c2a7"]]},{"id":"5e2be42900ee5080","type":"inject","z":"bd6892582b896458","name":"","props":[{"p":"topic","vt":"str"}],"repeat":"10","crontab":"","once":false,"onceDelay":0.1,"topic":"sync","x":90,"y":180,"wires":[["80cabf4d730c69e9","eb838059898d3fdc"]]},{"id":"97a96b7eb024e484","type":"function","z":"bd6892582b896458","name":"Extract Value","func":"var svar = \"\";\nvar value=msg.payload.status;\nif (value == \"On\") {\nsvar = {payload:1};\nreturn svar}\nif (value == \"Off\") {\nsvar = {payload:0};\nreturn svar}","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":630,"y":120,"wires":[["2c12c58c597facb6"]]},{"id":"b109a4a06c64234c","type":"ui_text","z":"bd6892582b896458","group":"ab0b4b6271303101","order":1,"width":0,"height":0,"name":"","label":"Temp kjøkken","format":"{{msg.payload}}","layout":"col-center","className":"","x":880,"y":420,"wires":[]},{"id":"c26e44f1ef456505","type":"ui_text","z":"bd6892582b896458","group":"394dcffd2bbde9fc","order":1,"width":0,"height":0,"name":"","label":"Utetemperatur","format":"{{msg.payload}}","layout":"col-center","className":"","x":900,"y":760,"wires":[]},{"id":"6db118ed1b0c56de","type":"mqtt-broker","name":"DaleMQTT","broker":"172.16.0.94","port":"1883","clientid":"","usetls":false,"protocolVersion":"4","keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"sessionExpiry":""},{"id":"394dcffd2bbde9fc","type":"ui_group","name":"Trends","tab":"e3ef94435f0945bf","order":2,"disp":false,"width":"6","collapse":false,"className":""},{"id":"45fc21be8d63c5ff","type":"ui_group","name":"PoolTrends","tab":"b91fa54f1d7b5859","order":3,"disp":false,"width":"5","collapse":false,"className":""},{"id":"47a266d7202a6d2f","type":"ui_group","name":"PoolTrend2","tab":"b91fa54f1d7b5859","order":2,"disp":false,"width":"5","collapse":false,"className":""},{"id":"8cea2f7d775df12f","type":"hs-server","name":"HS4","host":"172.16.0.102","port":"80"},{"id":"b31303479769b0ef","type":"ui_group","name":"Values","tab":"b91fa54f1d7b5859","order":1,"disp":false,"width":"4","collapse":false,"className":""},{"id":"ab0b4b6271303101","type":"ui_group","name":"Default","tab":"e3ef94435f0945bf","order":1,"disp":false,"width":"6","collapse":false,"className":""},{"id":"e3ef94435f0945bf","type":"ui_tab","name":"Home","icon":"dashboard","disabled":false,"hidden":false},{"id":"b91fa54f1d7b5859","type":"ui_tab","name":"Pool","icon":"dashboard","order":2,"disabled":false,"hidden":false}]

Ga opp det forsøket mitt og startet med Node-Red Dashboard i stedet. Har bare snekret et par kladdebilder enda men ser en liten utfordring. Når bildet ikke har vært vist på en stund tar det evigheter (=opptil flere minutt) før trendobjektene oppdateres. Eksempel et halvminutt eller så etter siden vises: En stund senere: Beklager hvis jeg kupper tråden din @Terje Klungervik men jeg tenker å komme med noe mer matnyttig etterhvert...

Begynte i går kveld å leke litt med node-red-contrib-tv men ikke hatt tid til å få gang på noe vettigt enda... Liker egentlig ikke designet så godt men det er nå en start...

Skjer litt mer i kulisssene en folk flest er klar over, hva gjør din Android eller Eplefon i det skjulte... https://www.scss.tcd.ie/doug.leith/apple_google.pdf

Tenkte muliges å legge litt tynn sortmaling oppå gullet og umiddelbart tørke med fille eller noe sånt slik at det blir litt mørkere/skittent i gropene. Må evt eksperimenteres litt med først.

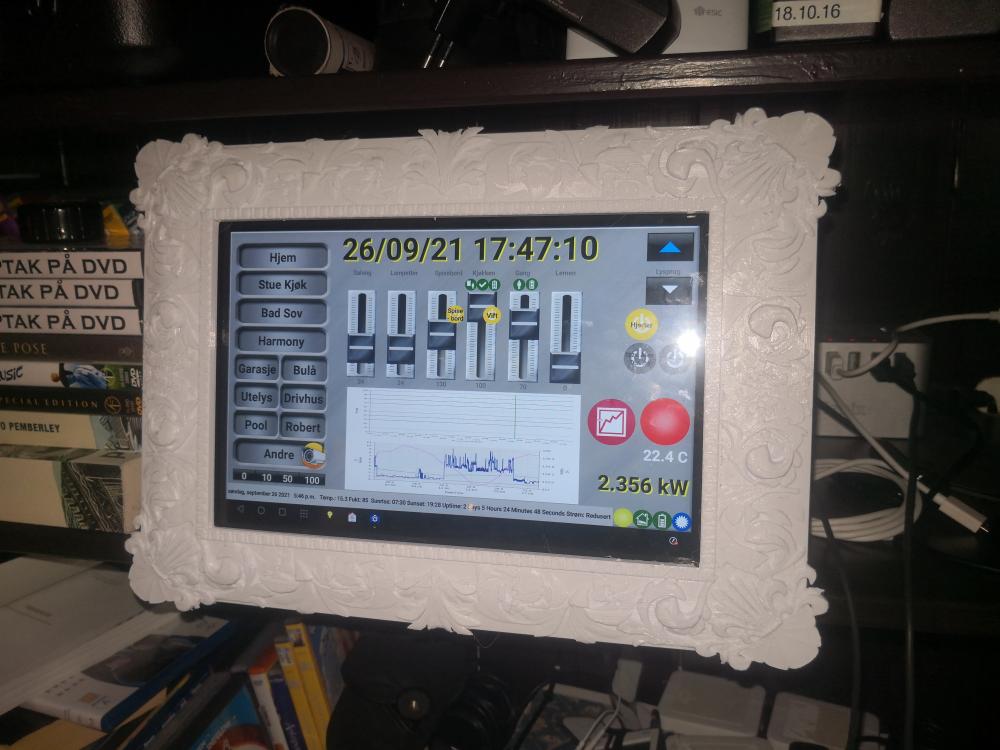

Når en bor i hus fra 1840 kan en jo kamuflere de moderne dippeduttene bittelitt: 3D printet ramme etter mål. Spørs om den ikke får seg et strøk med gullspray etterhvert...

Jeg slår litt andre veien enn @Moskus 😊, har 60-70 Z-Wave enheter koblet til HomeSeer 4 og de funker 99% eller noe sånn. Har en og annen feilfunksjon, helt usystematisk i ny og ne. Som at utelyset styres fra 3 Z-Wave dimmere pga geografisk avstand (3 bygninger) og av og til er det et utelys som ikke slår seg på eller av. Slike ting skjer jevnlig og har gjort det siden dag 1. Teorien bak Z-Wave tilsier jo at slikt ikke skal skje men gjør det likevel. Den siste tiden har jeg begynt å supplere/bytte ut med Zigbee og selv om jeg bare har kommet opp i 20 enheter ser det ut til å fungere meget bedre, både raskere og mer pålitelig. Jeg har hatt noe Ikea Zigbee utstyr i mange år, styrt både med IKEA Gateway og med Jowihue/DeConz/Conbee, ingen av disse 2 variantene synes jeg var særlig bra. Nå kjører jeg Zigbee via en Raspberry Pi 3B+ med zigbee2mqtt, Mosquitto MQTT Broker på en virtuell Linuxmaskin og programmerer noe i HomeSeer 4 vha mcsMQTT og noe direkte i Node-Red. Mitt opplegg er vel kanskje ikke helt for en nybegynner men du må vurdere litt egne kunnskaper, der finnes mange alternativer, både gratis og som må kjøpes og betalingsløsningene har ofte noen uker prøvetid. Jeg var gjennom mange varianter før jeg falt ned på HomeSeer. Edit: Z-Wave dimmere dimmer veldig i trappetrinn, spesielt Qubino men også Fibaro, mens de Zigbee dimmerene jeg har dimmer veldig jevnt uten trappetrinn, både HUE, Sunricher og Ikea.

Ja, det vil jeg tro. Flere her som bruker Z-Water som sikkert kan bidra på den biten. Homey vet jeg ikke noe om.

Der står "NC" på aktuatoren så den har nok strøm siden den er aktivert (=blå stripe synlig). Sjekk kobling eller logikk. Jeg har ikke Z-Water men vanlige releer til min vannbårne gulvvarme og DS18B20 gulvsensorer via Fibaro UBS. Termostatene er enkle events i HS4

De pleier å være NC men finnes også i NO. De bildene dine viser er åpne (fordi der står strøm på?) og de er trege, kan ta opptil flere minutter fra åpen til stengt eller motsatt.

Versjonsnummer? Jeg kom i skade for å installere siste beta (4.2.0.8) og fikk en del merkelige og alvorlige feil som at enkelte devicer ikke dukker opp i drop-down lister. Du kan jo også prøve med en annen nettleser.

Hadde behov/ønske om litt nattlys på soverommet men en slik plugg som en bare stapper i stikkontakten er jo bare for pingler... En HUE bevegelssensor, en HUE LED stripe og litt eksperimentering i Node Red endte opp slik: Dimmer opp i løpet av 10 sek og etter 1 minutt dimmer ned igjen i løpet av 120 sek.

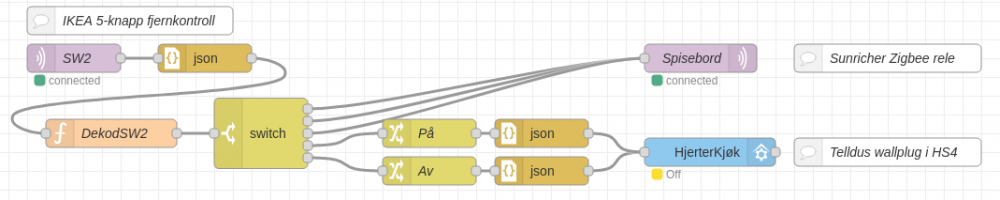

Putler i vei litt videre. Poster her når jeg har fått "hull på byllen", dvs. fått ting til å virke. Denne gangen er det en IKEA rund 5-knapp fjernkontroll via zigbee2mqtt som styrer en wallplug i HS4 og er Sunricher rele via mqtt/zigbee2mqtt: Litt for andre og litt for meg selv som huskeliste 😉 [{"id":"0e1f5a47dab01ac8","type":"tab","label":"IKEA Remote SW2","disabled":false,"info":""},{"id":"e7d4221599ac53c2","type":"mqtt in","z":"0e1f5a47dab01ac8","name":"SW2","topic":"zigbee2mqtt/IKEA/Tradfri_SW2","qos":"2","datatype":"auto","broker":"6db118ed1b0c56de","nl":false,"rap":true,"rh":0,"x":90,"y":80,"wires":[["1e2e7dccdd786a5f"]]},{"id":"40365f1ed2766793","type":"mqtt out","z":"0e1f5a47dab01ac8","name":"Spisebord","topic":"zigbee2mqtt/Lys/Spisebord/set","qos":"0","retain":"","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"6db118ed1b0c56de","x":760,"y":80,"wires":[]},{"id":"1e2e7dccdd786a5f","type":"json","z":"0e1f5a47dab01ac8","name":"","property":"payload","action":"obj","pretty":false,"x":230,"y":80,"wires":[["064e9d908740e547"]]},{"id":"064e9d908740e547","type":"function","z":"0e1f5a47dab01ac8","name":"DekodSW2","func":"var svar = \"\";\nvar action=msg.payload.action;\nif (action==\"toggle\") {\n svar= {payload:\"TOGGLE\"};\n}\nif (action==\"brightness_up_click\") {\n svar= {payload:\"ON\"};\n}\nif (action==\"brightness_down_click\") {\n svar= {payload:\"OFF\"};\n}\nif (action==\"arrow_left_click\") {\n svar= {payload:\"L\"};\n}\nif (action==\"arrow_right_click\") {\n svar= {payload:\"R\"};\n}\n\nreturn svar;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":130,"y":160,"wires":[["07fb951a50e9c8c6"]]},{"id":"ecd3c99e5f1797a0","type":"hs-device","z":"0e1f5a47dab01ac8","name":"HjerterKjøk","device":"1688","server":"8cea2f7d775df12f","feature":0,"reportonstartup":false,"x":770,"y":180,"wires":[[]]},{"id":"07fb951a50e9c8c6","type":"switch","z":"0e1f5a47dab01ac8","name":"","property":"payload","propertyType":"msg","rules":[{"t":"eq","v":"ON","vt":"str"},{"t":"eq","v":"OFF","vt":"str"},{"t":"eq","v":"TOGGLE","vt":"str"},{"t":"eq","v":"L","vt":"str"},{"t":"eq","v":"R","vt":"str"}],"checkall":"true","repair":true,"outputs":5,"x":290,"y":160,"wires":[["40365f1ed2766793"],["40365f1ed2766793"],["40365f1ed2766793"],["6d6a304991a8d20b"],["579dcb740e976515"]],"outputLabels":["","","","Ev1","Ev2"]},{"id":"579dcb740e976515","type":"change","z":"0e1f5a47dab01ac8","name":"Av","rules":[{"t":"set","p":"topic","pt":"msg","to":"control","tot":"str"},{"t":"set","p":"payload","pt":"msg","to":"{\"status\":\"OFF\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":470,"y":200,"wires":[["c1e0bc0d7ac004f4"]]},{"id":"c1e0bc0d7ac004f4","type":"json","z":"0e1f5a47dab01ac8","name":"","property":"payload","action":"","pretty":false,"x":590,"y":200,"wires":[["ecd3c99e5f1797a0"]]},{"id":"6d6a304991a8d20b","type":"change","z":"0e1f5a47dab01ac8","name":"På","rules":[{"t":"set","p":"topic","pt":"msg","to":"control","tot":"str"},{"t":"set","p":"payload","pt":"msg","to":"{\"status\":\"ON\"}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":470,"y":160,"wires":[["49dbaad0fe1bd6b0"]]},{"id":"49dbaad0fe1bd6b0","type":"json","z":"0e1f5a47dab01ac8","name":"","property":"payload","action":"","pretty":false,"x":590,"y":160,"wires":[["ecd3c99e5f1797a0"]]},{"id":"bf58b55dadacba35","type":"comment","z":"0e1f5a47dab01ac8","name":"Telldus wallplug i HS4","info":"","x":960,"y":180,"wires":[]},{"id":"6097e1532a616b0b","type":"comment","z":"0e1f5a47dab01ac8","name":"Sunricher Zigbee rele","info":"","x":960,"y":80,"wires":[]},{"id":"8de42efafb168028","type":"comment","z":"0e1f5a47dab01ac8","name":"IKEA 5-knapp fjernkontroll","info":"","x":150,"y":40,"wires":[]},{"id":"6db118ed1b0c56de","type":"mqtt-broker","name":"DaleMQTT","broker":"172.16.0.94","port":"1883","clientid":"","usetls":false,"protocolVersion":"4","keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"sessionExpiry":""},{"id":"8cea2f7d775df12f","type":"hs-server","name":"HS4","host":"172.16.0.102","port":"80"}]

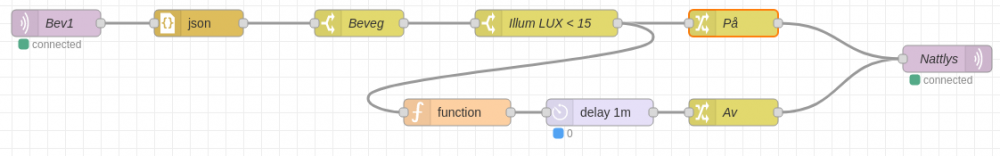

Da har jeg forenklet litt og fått det til å virke tilfredsstillende: [{"id":"6e716fb5.71658","type":"tab","label":"Flow 2"},{"id":"8f9a50d4b09f6554","type":"mqtt in","z":"6e716fb5.71658","name":"Bev1","topic":"zigbee2mqtt/HUE/Sov1Beveg","qos":"0","datatype":"auto","broker":"6db118ed1b0c56de","nl":false,"rap":true,"rh":0,"x":170,"y":160,"wires":[["b1faf566507cd1bb"]]},{"id":"042eecf372789b8e","type":"mqtt out","z":"6e716fb5.71658","name":"Nattlys","topic":"zigbee2mqtt/HUE/NattlysSov1/set","qos":"","retain":"","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"6db118ed1b0c56de","x":1170,"y":200,"wires":[]},{"id":"599f78525155c46b","type":"change","z":"6e716fb5.71658","name":"Av","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":0,\"transition\":60}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":930,"y":260,"wires":[["042eecf372789b8e"]]},{"id":"555f9fffe3349a6b","type":"delay","z":"6e716fb5.71658","name":"","pauseType":"delay","timeout":"1","timeoutUnits":"minutes","rate":"1","nbRateUnits":"1","rateUnits":"minute","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":true,"allowrate":false,"x":780,"y":260,"wires":[["599f78525155c46b"]]},{"id":"cd90cb56d0f52093","type":"change","z":"6e716fb5.71658","name":"På","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":150,\"transition\":15}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":930,"y":160,"wires":[["042eecf372789b8e"]]},{"id":"b1faf566507cd1bb","type":"json","z":"6e716fb5.71658","name":"","property":"payload","action":"","pretty":false,"x":330,"y":160,"wires":[["317aadc39d87352b"]]},{"id":"317aadc39d87352b","type":"switch","z":"6e716fb5.71658","name":"Beveg","property":"payload.occupancy","propertyType":"msg","rules":[{"t":"true"}],"checkall":"true","repair":false,"outputs":1,"x":510,"y":160,"wires":[["1ba54974b376c742"]]},{"id":"1ba54974b376c742","type":"switch","z":"6e716fb5.71658","name":"Illum LUX < 15","property":"payload.illuminance_lux","propertyType":"msg","rules":[{"t":"lt","v":"15","vt":"str"}],"checkall":"true","repair":false,"outputs":1,"x":720,"y":160,"wires":[["cd90cb56d0f52093","4b62b6861f671f57"]]},{"id":"4b62b6861f671f57","type":"function","z":"6e716fb5.71658","name":"","func":"msg.delay = 60000;\nvar m1 = {reset:true};\nreturn [[m1,msg]];","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":620,"y":260,"wires":[["555f9fffe3349a6b"]]},{"id":"6db118ed1b0c56de","type":"mqtt-broker","name":"DaleMQTT","broker":"172.16.0.94","port":"1883","clientid":"","usetls":false,"protocolVersion":"4","keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"sessionExpiry":""}] Takker og bukker for hjelpen. Veldig greit å kjøre Node-Red parallellt med HomeSeer

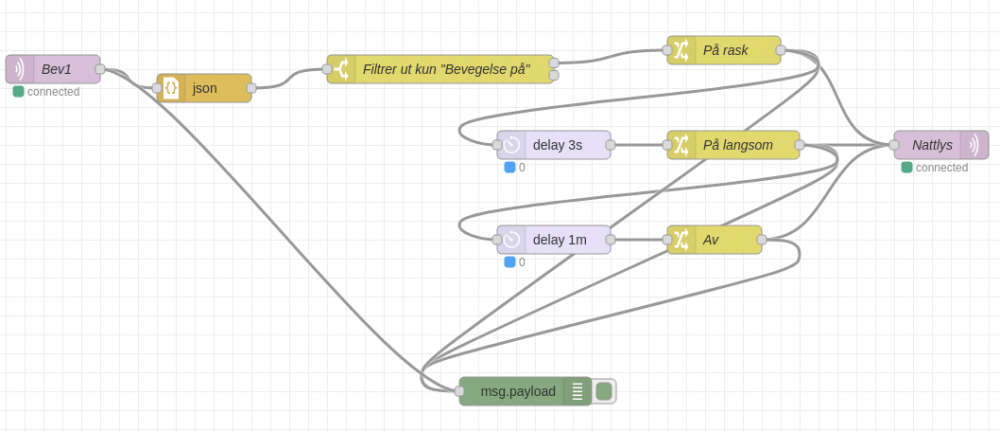

Da er jeg kommet litt nærmere: Lyset går på som planlagt men med flere aktiveringer av bevegelssessensoren køer det seg opp med "av" kommandoer, 5 i dette eksempelet. Ved HVER ny bevegelse vil jeg slette alt i køen og legge inn kun 1 ny forsinket kommando. Hvordan? [{"id":"6e716fb5.71658","type":"tab","label":"Flow 2"},{"id":"8f9a50d4b09f6554","type":"mqtt in","z":"6e716fb5.71658","name":"Bev1","topic":"zigbee2mqtt/HUE/Sov1Beveg","qos":"0","datatype":"auto","broker":"6db118ed1b0c56de","nl":false,"rap":true,"rh":0,"x":170,"y":160,"wires":[["b1faf566507cd1bb"]]},{"id":"042eecf372789b8e","type":"mqtt out","z":"6e716fb5.71658","name":"Nattlys","topic":"zigbee2mqtt/HUE/NattlysSov1/set","qos":"","retain":"","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"6db118ed1b0c56de","x":1230,"y":260,"wires":[]},{"id":"d118a9f20f32cace","type":"change","z":"6e716fb5.71658","name":"På langsom","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":100,\"transition\":25}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":910,"y":260,"wires":[["042eecf372789b8e","a9c4f1bd5c640d81","555f9fffe3349a6b"]]},{"id":"599f78525155c46b","type":"change","z":"6e716fb5.71658","name":"Av","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":0,\"transition\":30}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":890,"y":360,"wires":[["042eecf372789b8e","a9c4f1bd5c640d81"]]},{"id":"555f9fffe3349a6b","type":"delay","z":"6e716fb5.71658","name":"","pauseType":"delay","timeout":"1","timeoutUnits":"minutes","rate":"1","nbRateUnits":"1","rateUnits":"minute","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":true,"allowrate":false,"x":720,"y":360,"wires":[["599f78525155c46b"]]},{"id":"cd90cb56d0f52093","type":"change","z":"6e716fb5.71658","name":"På rask","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":30,\"transition\":1}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":900,"y":160,"wires":[["042eecf372789b8e","a9c4f1bd5c640d81","0ccec4c709bd297b"]]},{"id":"0ccec4c709bd297b","type":"delay","z":"6e716fb5.71658","name":"","pauseType":"delay","timeout":"3","timeoutUnits":"seconds","rate":"1","nbRateUnits":"1","rateUnits":"second","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":false,"allowrate":false,"x":720,"y":260,"wires":[["d118a9f20f32cace"]]},{"id":"a9c4f1bd5c640d81","type":"debug","z":"6e716fb5.71658","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":1210,"y":340,"wires":[]},{"id":"b1faf566507cd1bb","type":"json","z":"6e716fb5.71658","name":"","property":"payload","action":"","pretty":false,"x":330,"y":160,"wires":[["317aadc39d87352b"]]},{"id":"317aadc39d87352b","type":"switch","z":"6e716fb5.71658","name":"Beveg","property":"payload.occupancy","propertyType":"msg","rules":[{"t":"true"}],"checkall":"true","repair":false,"outputs":1,"x":510,"y":160,"wires":[["1ba54974b376c742"]]},{"id":"1ba54974b376c742","type":"switch","z":"6e716fb5.71658","name":"Illum LUX","property":"payload.illuminance_lux","propertyType":"msg","rules":[{"t":"lt","v":"15","vt":"str"}],"checkall":"true","repair":false,"outputs":1,"x":700,"y":160,"wires":[["cd90cb56d0f52093"]]},{"id":"6db118ed1b0c56de","type":"mqtt-broker","name":"DaleMQTT","broker":"172.16.0.94","port":"1883","clientid":"","usetls":false,"protocolVersion":"4","keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"sessionExpiry":""}]

Begynte i natt å se litt på Node-Red og har nå fått til litt greier men trenger litt hjelp... Har en bevegelsessensor som skal slå på nattlys litt stille og rolig og slå av igjen etter en tid. Denne sender følgende via mqtt: Jeg ønsker å filtrerer ut "occupancy" og kjøre en flow når denne er "true". Lyset går da raskt opp til 30 for så å sakte gå opp til 100. 1 minutt senere skal det sakte slå seg av igjen. Denne flowen fungerer for så vidt men ved flere aktiveringer legger der seg flere "slå av" kommandoer i kø og det er ikke så lurt. Tatt i betraktning at jeg er heeeeelt fersk på Node-Red så er jeg fornøyd med at det virker sånn noenlunde men regner med det er ultraklønete laget. Noen som vil guide meg litt på vei? Noen flere parameter trengs også etterhvert som f.eks. er det ikke nødvendig med nattlys på dagtid, enten ut fra soloppgang/nedgang eller kanskje litt mer elegant vha. lyssensoren i bevegelssensoren. [{"id":"6e716fb5.71658","type":"tab","label":"Flow 2"},{"id":"8f9a50d4b09f6554","type":"mqtt in","z":"6e716fb5.71658","name":"Bev1","topic":"zigbee2mqtt/HUE/Sov1Beveg","qos":"0","datatype":"auto","broker":"6db118ed1b0c56de","nl":false,"rap":true,"rh":0,"x":190,"y":300,"wires":[["6be4bd0d5ef4eefb","a9c4f1bd5c640d81"]]},{"id":"042eecf372789b8e","type":"mqtt out","z":"6e716fb5.71658","name":"Nattlys","topic":"zigbee2mqtt/HUE/NattlysSov1/set","qos":"2","retain":"","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"6db118ed1b0c56de","x":1230,"y":380,"wires":[]},{"id":"9abd98fd718357d6","type":"switch","z":"6e716fb5.71658","name":"Filtrer ut kun \"Bevegelse på\"","property":"payload.occupancy","propertyType":"msg","rules":[{"t":"cont","v":"true","vt":"str"}],"checkall":"true","repair":false,"outputs":1,"x":580,"y":300,"wires":[["cd90cb56d0f52093"]],"outputLabels":["True"]},{"id":"6be4bd0d5ef4eefb","type":"json","z":"6e716fb5.71658","name":"","property":"payload","action":"","pretty":true,"x":360,"y":300,"wires":[["9abd98fd718357d6"]]},{"id":"d118a9f20f32cace","type":"change","z":"6e716fb5.71658","name":"På langsom","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":100,\"transition\":25}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":910,"y":380,"wires":[["042eecf372789b8e","a9c4f1bd5c640d81","555f9fffe3349a6b"]]},{"id":"599f78525155c46b","type":"change","z":"6e716fb5.71658","name":"Av","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":0,\"transition\":30}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":890,"y":480,"wires":[["042eecf372789b8e","a9c4f1bd5c640d81"]]},{"id":"555f9fffe3349a6b","type":"delay","z":"6e716fb5.71658","name":"","pauseType":"delay","timeout":"1","timeoutUnits":"minutes","rate":"1","nbRateUnits":"1","rateUnits":"minute","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":true,"allowrate":false,"x":720,"y":480,"wires":[["599f78525155c46b"]]},{"id":"cd90cb56d0f52093","type":"change","z":"6e716fb5.71658","name":"På rask","rules":[{"t":"set","p":"payload","pt":"msg","to":"{\"brightness\":30,\"transition\":1}","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":900,"y":280,"wires":[["042eecf372789b8e","a9c4f1bd5c640d81","0ccec4c709bd297b"]]},{"id":"0ccec4c709bd297b","type":"delay","z":"6e716fb5.71658","name":"","pauseType":"delay","timeout":"3","timeoutUnits":"seconds","rate":"1","nbRateUnits":"1","rateUnits":"second","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":false,"allowrate":false,"x":720,"y":380,"wires":[["d118a9f20f32cace"]]},{"id":"a9c4f1bd5c640d81","type":"debug","z":"6e716fb5.71658","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":850,"y":640,"wires":[]},{"id":"6db118ed1b0c56de","type":"mqtt-broker","name":"DaleMQTT","broker":"172.16.0.94","port":"1883","clientid":"","usetls":false,"protocolVersion":"4","keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"sessionExpiry":""}]

Denne her: https://www.elkjop.no/product/smarte-hjem/smart-varme-strom-inneklima/136869/apex-smart-plug er jo rimelig slank OG 16A/3860W. Har ikke prøvd den da...

Har noen Sunricher batteriløse brytere og de er omtrent like tunge å trykke på som en vanlig Elko bryter med returfjær. Har ikke hatt de lenge men er kjempefornøyd så langt.

Har gått gjennom denne oppskriften for noen mnd siden og har ikke merket noen uplanlagte reboot men i går fikk jeg ikke slukket lyset da jeg skulle legge meg... Fant at HS4 serveren min hadde restartet og stod i et konfigureringsbilde for å aktivere nye fanzy Microsoft greier som jeg ikke vil ha... Gikk inn i taskschd og fant dette: "Reboot" får jeg ikke lov å deaktivere men det var de rebootene som ER deaktivert som har kjørt... Finnes der ikke noen idiot- og skuddsikker løsning på dette her, annet enn å legge over til Linux, eller er idiotene fremdeles for smarte?

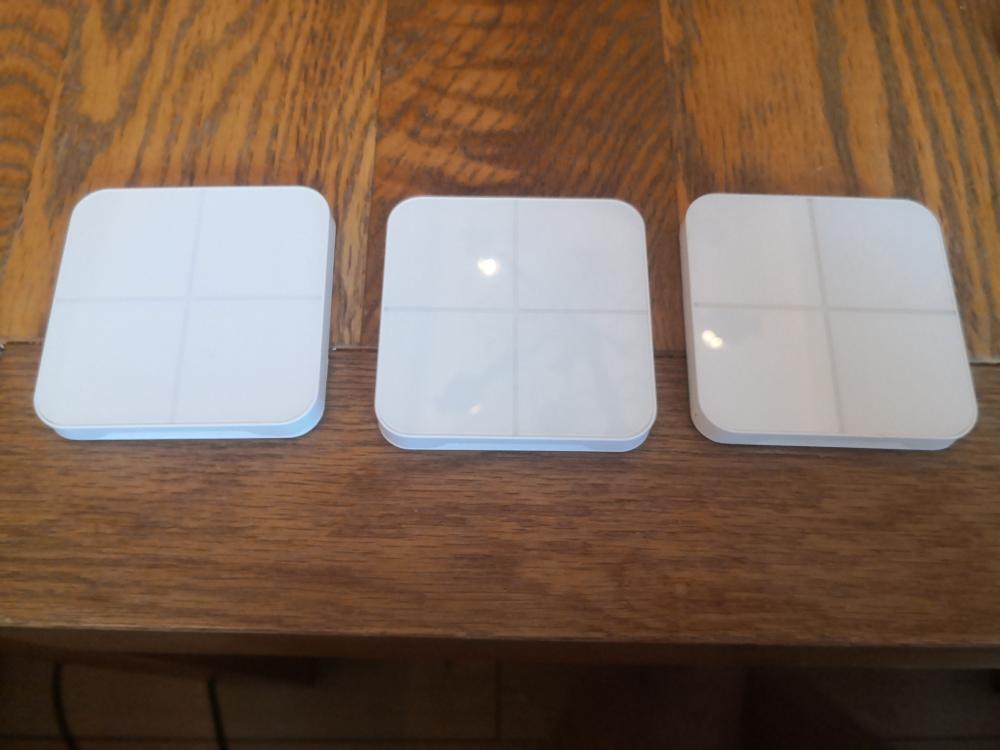

https://www.kjell.com/no/produkter/smarte-hjem/smarte-hjem-losninger/aeon-labs-smarte-hjem/aeotec-wallmote-quad-tradlos-z-wave-fjernkontroll-p50891 Selges helst samlet. Med magnetisk montasjeplate men medfølgende dobbeltsidige tape er brukt og neppe særlig brukende igjen.

Ja, det der er litt trasig. Jeg liker IKEA fjernkontroller og de koster ikke stort. Jeg startet med Conbee/deCONZ/Jowihue og hadde litt varierende stabilitet og gikk over til IKEA Gateway men det var på ingen måte bedre og mistet fjernkontrollene. For å leke litt satte jeg opp en RPi3B+ med Raspbee II og Zigbee2MQTT. Sliter med stabiliteten, funker helt supert i timevis og kanskje et døgn men så sovner sakene. Sliter ofte med å få Zigbee2MQTT til å starte. Restart av RPi er ikke noen fasit men etter en del forsøk kommer den... Nå er jo ikke Raspbee II 100% støttet for tiden så jeg regner med det vil ordne seg når der dukker opp et par Zigbee USB coordinator v4 CC2652P fra Ukraina.

De der billige gassovnene er kun beregnet for bruk i godt ventilerte områder for de bruker opp mye oksygen i luften. Da jeg kjøpte hus for 10 års tid siden brukte jeg en slik for å ha litt varme under oppussingen i starten. Selv med alle innedører åpne slik at jeg vel hadde noe rundt 140 m2 areal gikk der ikke lang tid, en time eller så, så slukket den pga manglende oksygen. Min hadde oksygensensor for å ikke ta livet av folk som ikke hadde greie på å bruke den... Litt lukt blir der og mye fuktighet. Da hadde det kanskje vært lurere med en litt stor Webasto eller Eber for å ta toppene så havner eksosen utendørs og avgiftsfri diesel blir nok en del billigere enn gass.

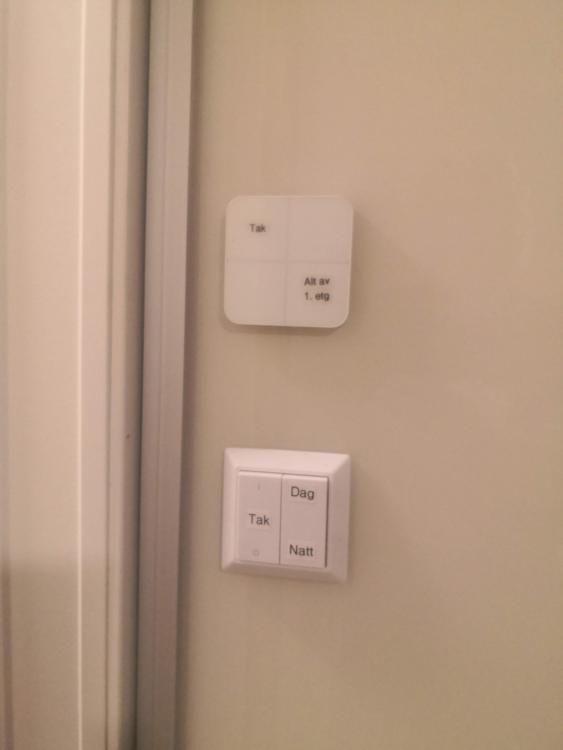

Stakk innom han Kjell og handla meg en Zigbee veggbryter: https://www.kjell.com/no/produkter/smarte-hjem/fjernkontroller/smarte-dimmerer/sunricher-zigbee-fjernstrombryter-for-veggmontering-p51600 uten batteri eller strømtilkobling. Energien ved å trykke på knappene er nok til å sende Zigbee data og knappene er ikke særlig tunge å trykke på heller, omtrent som en vanlig Elko bryter. MÅTTE bare ha en slik og har lekt litt med den i går og er storligen fornøyd så langt. Responsen via Zigbee2MQTT og Mosquitto inn til HS4 er jo tilnærmet momentan mot Wallmote Quad som har normalt 2-3 sek responstid og KAN ha opptil 10-20 sek... Tror nok der blir noen Wallmote Quad på billigsalg etterhvert... Så langt er det bare denne ene som er pensjonert siden den er den som brukes absolutt mest... Greit å slippe en laderunde hver mnd på alle Quadene også...

Et lite sidesprang: Har IKEA GW i HS4 i dag men med litt vekslende stabilitet og funksjonalitet (mangler f.eks. mulighet for IKEA fjernkontroller direkte i HS, det gikk med Conbee/deCONZ/Jowihue men lite stabilt). Om jeg lager meg en Zigbee2MQTT på en RPi3B+ evt en virtuell Ubuntumaskin, vil jeg da kunne velge hvilke enheter som kobler seg til hvor? Regner jo egentlig med det men greit å få det bekreftet av dere som har det i drift. Edit: Joda, det funker greit det så da har jeg 2 Zigbee system oppegående og kan flytte utstyr dit jeg vil/der det funker best.
